20 Foot Bushtracker Show Van 2024


Here are the details of our 20 foot couples (full width) show van for 2024.

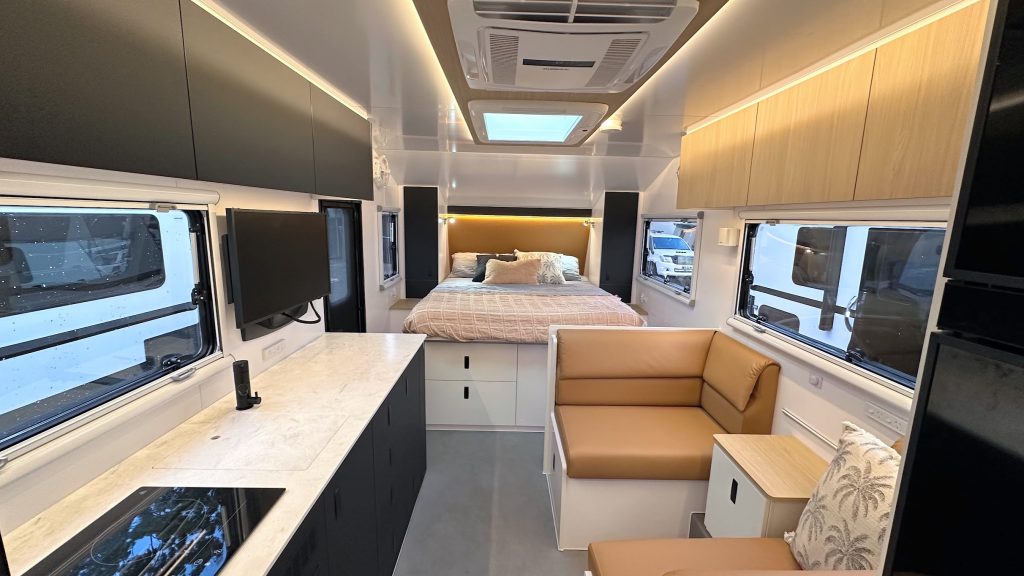

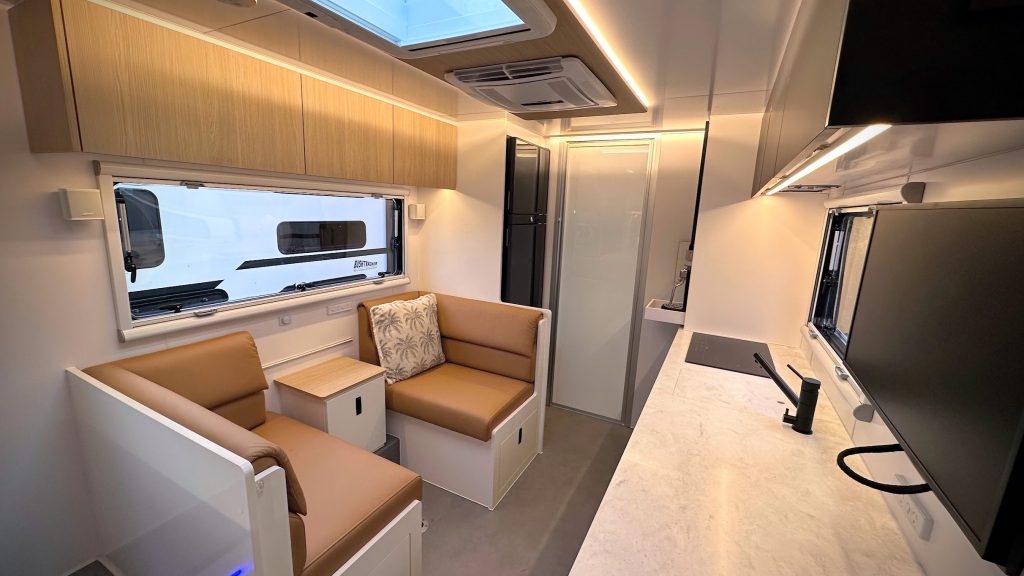

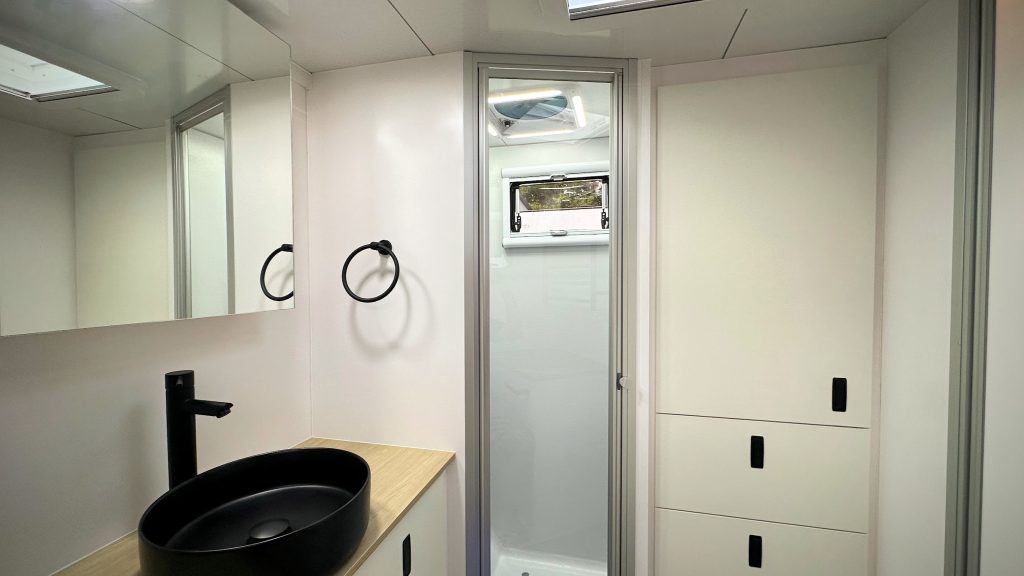

This van has an island bed layout at the front, café dining and kitchen in the middle with full height fridge and pantry, huge separate shower and toilet at the rear of the van. Complete with 600ah Premium Lithium battery system, 1440W solar panels, 224L full height compressor fridge, diesel heater.


This van also has a built-in sealed generator box built into the body of the van to save the additional weight and expense of a box on the A-frame. This van will be on display at various caravan shows throughout the year.


For more information on dates and venues please visit: Caravan Show Dates | Bushtracker at a Caravan Show near you

Layout plan


20 Foot Bushtracker Show Van 2024
20 Foot Bushtracker Show Van 2023
With all standard inclusions and the following additional options:


12V fan hatch in shower
Outdoor shower
3 x 90L water tanks (1 potable, 2 non-potable)(270L capacity)
with monitors
Grey water tank
3 in 1 In line water purifier
224L 2 door Dometic Compressor fridge (Tropical rating)
Electric roll out awning with remote control
Air conditioning (Dometic Freshjet Plus)
2 x Caframo fans installed
Diesel heater with 2 outlets
2.5kg wall mounted washing machine
600a/h Premium Lithium battery system
Second low capacity disconnect for Air Conditioner
8 x 180W high grade flexible solar panels (1440W total)
Upgraded 100A solar regulator installed
Anderson plug connected to 40A DC to DC charger
E-Pro Combi 3000W inverter / 120A battery charger
Dual induction cooktop
Panasonic convection microwave / oven / grill
Cruisemaster independent coil suspension
Webasto EVO5 diesel hot water system
Set of spotlights on front of van
Upgrade to electric steps
Sealed generator locker on off side
75mm higher walls
(list continued, please refer full pricing guide)




Length (caravan) 20 feet (6.1 M)
Length (overall) 27 feet (8.3 M)
Width 7’8″ feet (2.40 M)
Height 11 feet (3.35 M)
Tare weight 3,240kg
Payload 1255kg

Video walkthrough

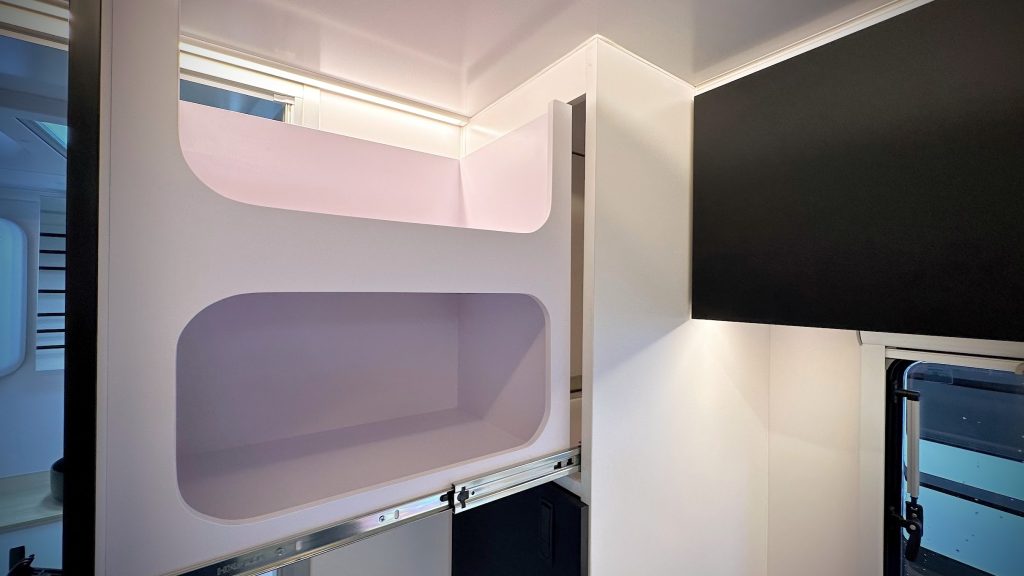

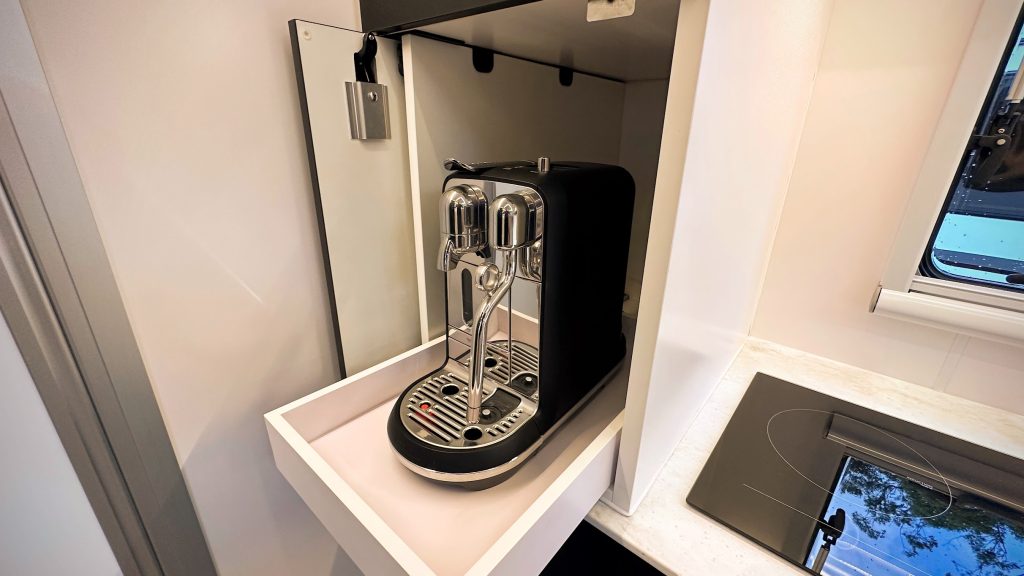

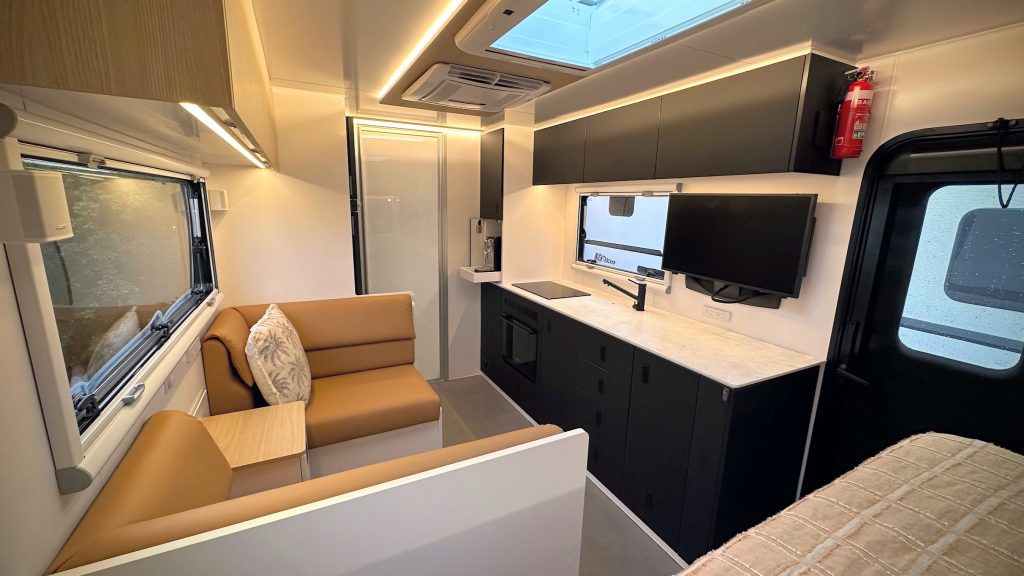

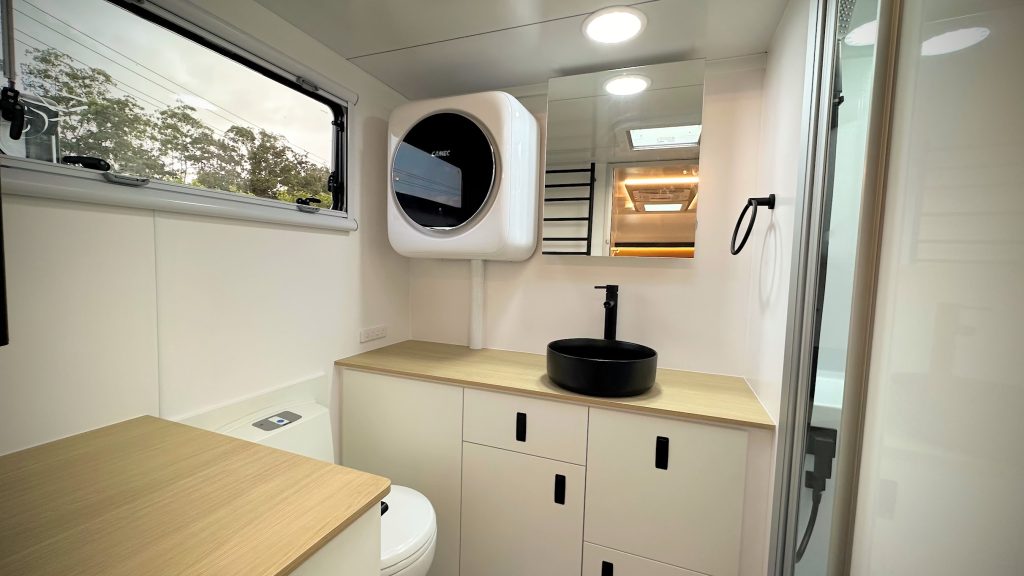

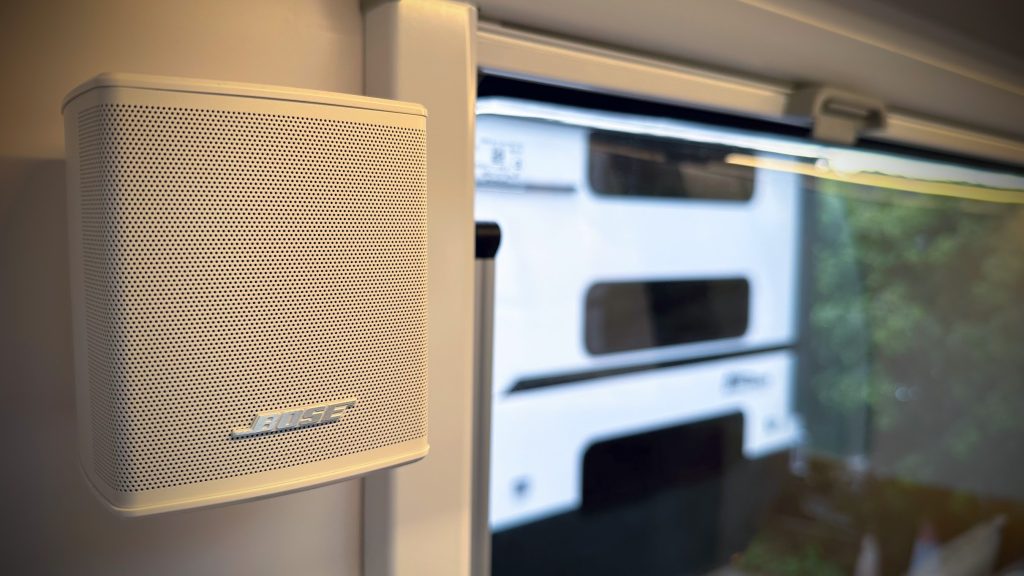

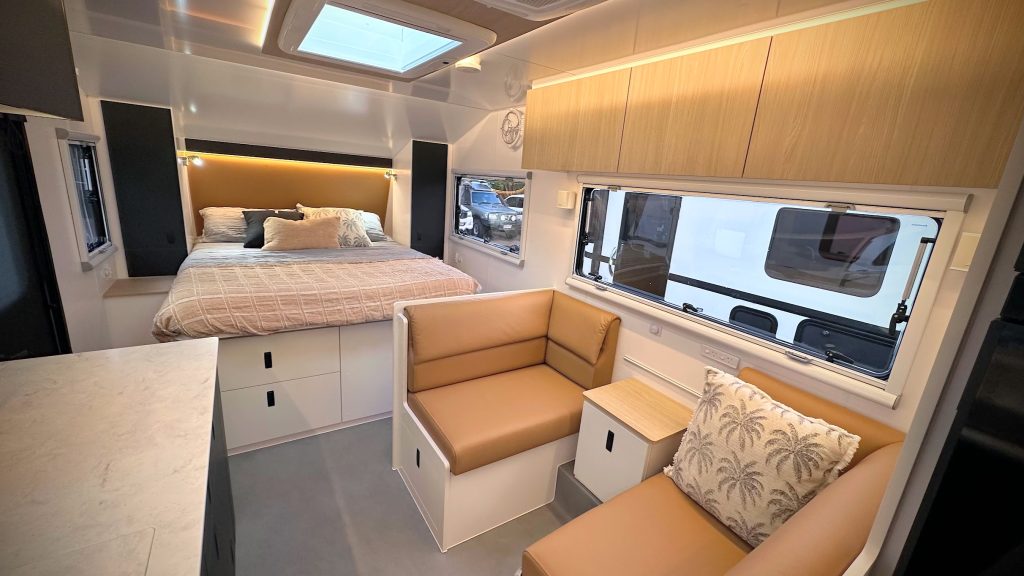

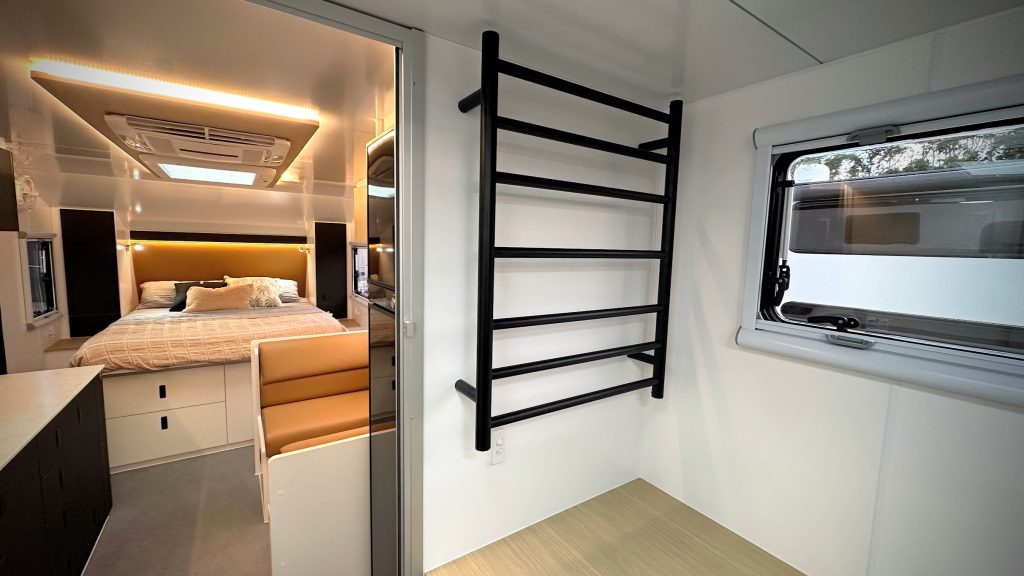

Internal Photo Gallery

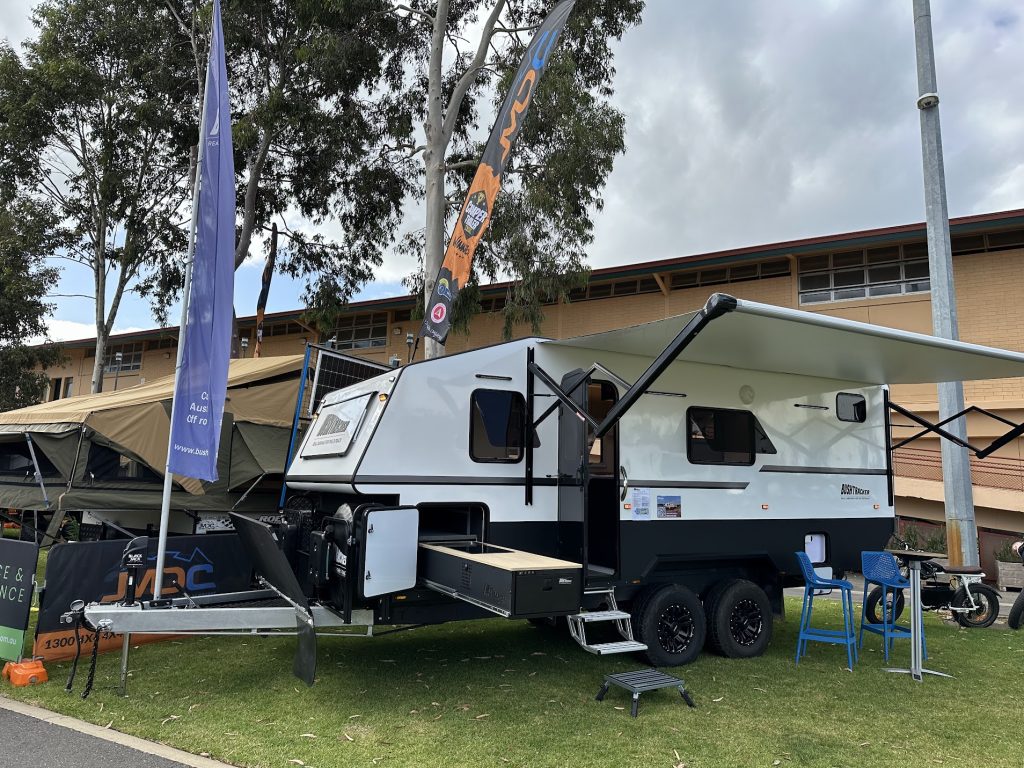

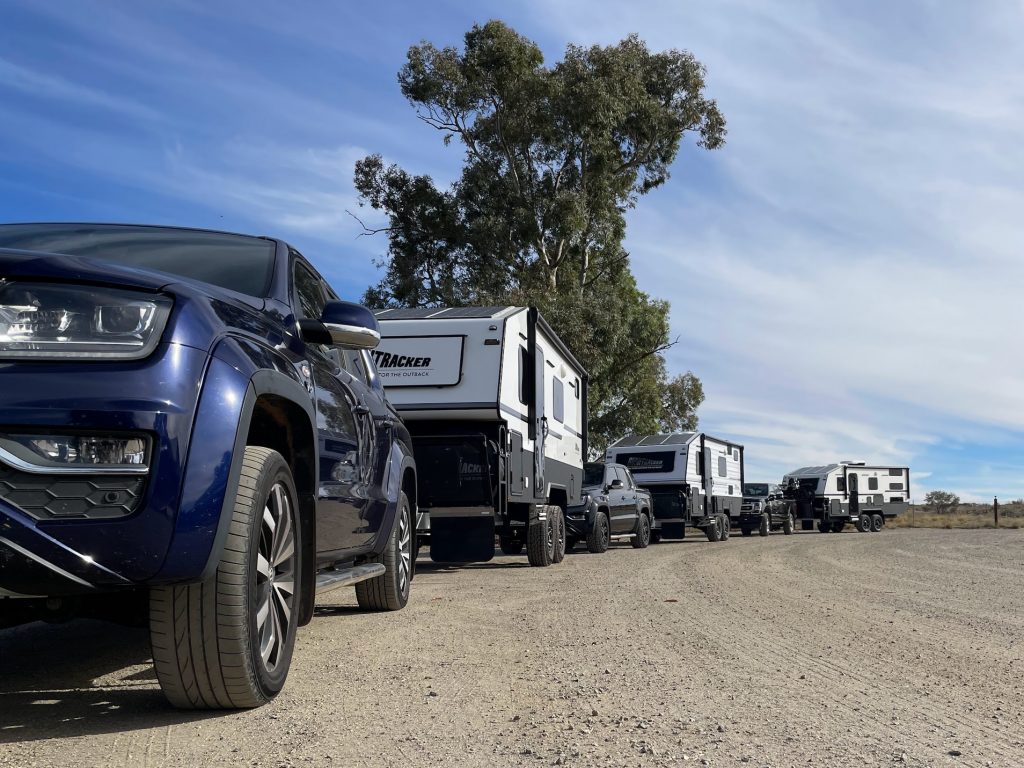

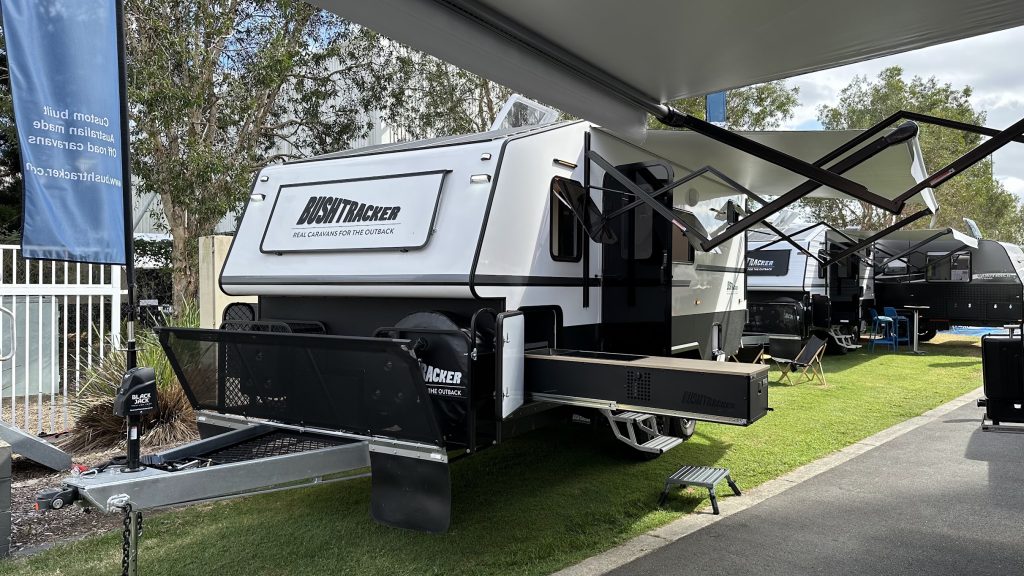

External Photo Gallery

Want more information on this van?

Please fill out your details below and we will get back to you with the full PDF spec sheet and break down of pricing
