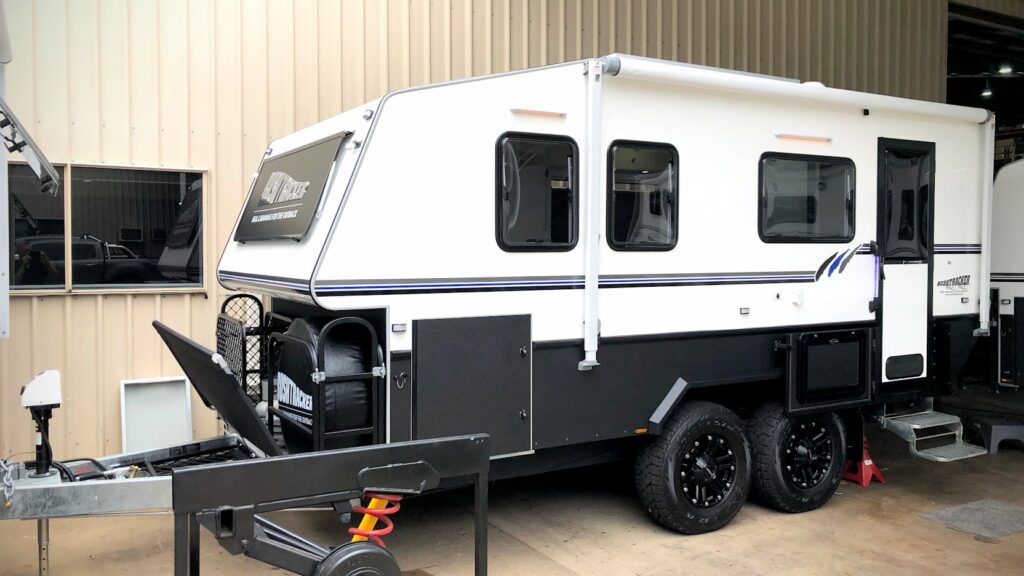

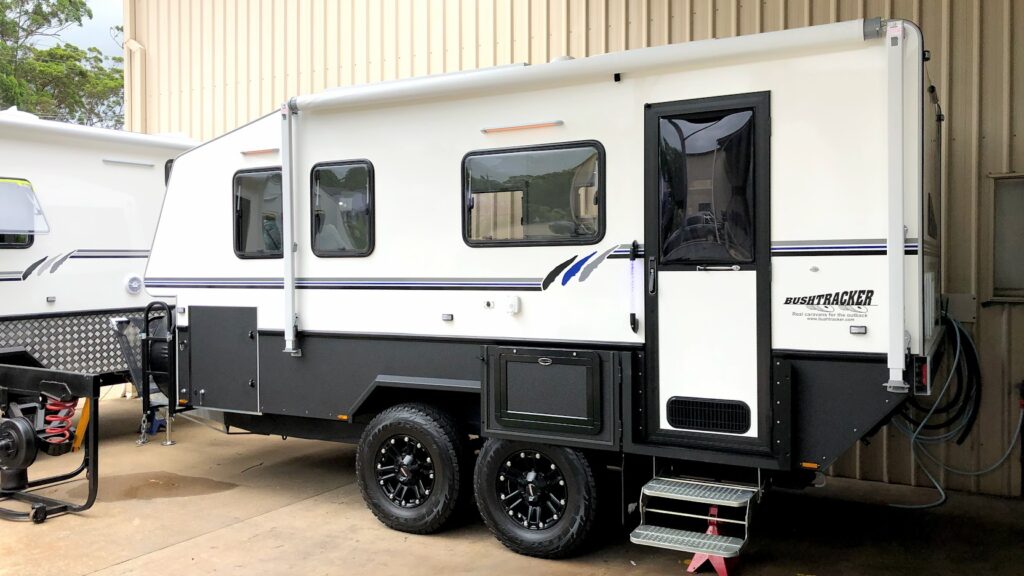

16 foot Bushtracker (compact width) show van 2020


Here are the details of our 16 foot couples (compact width) show van for 2020. Whilst this van is now sold and travelling around Australia with its new owners, it can be used as a great reference point for customising your own Bushtracker caravan.

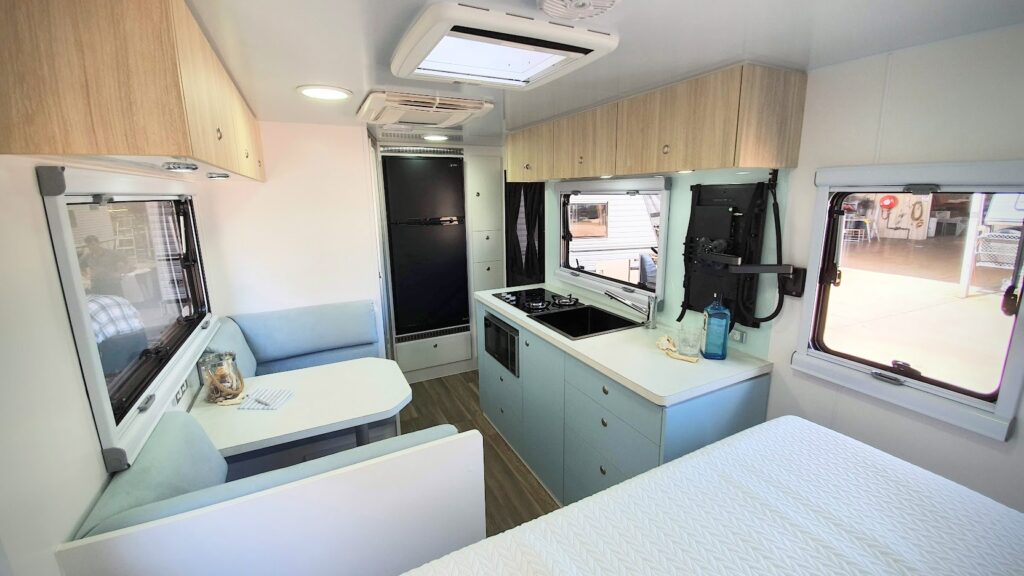

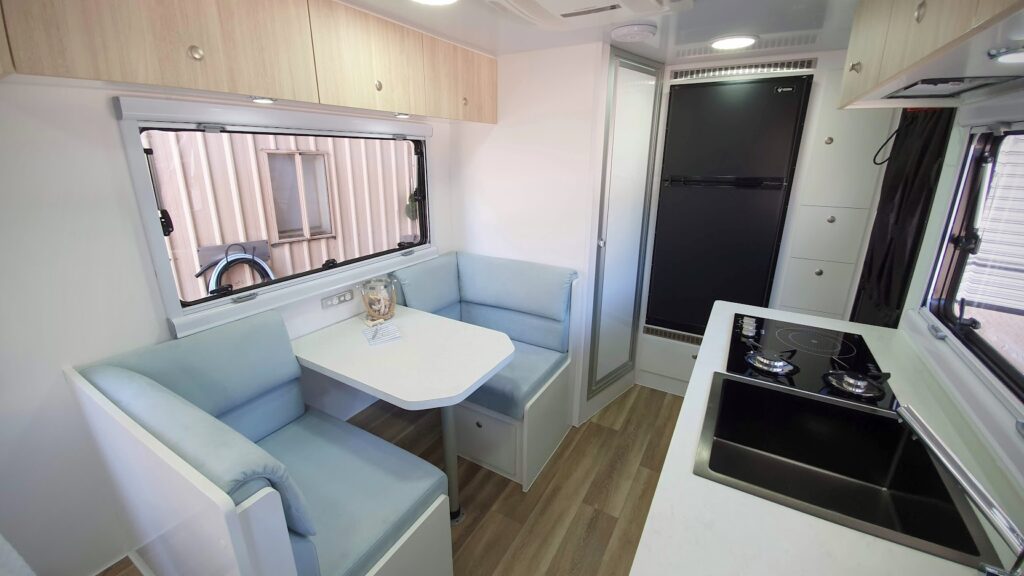

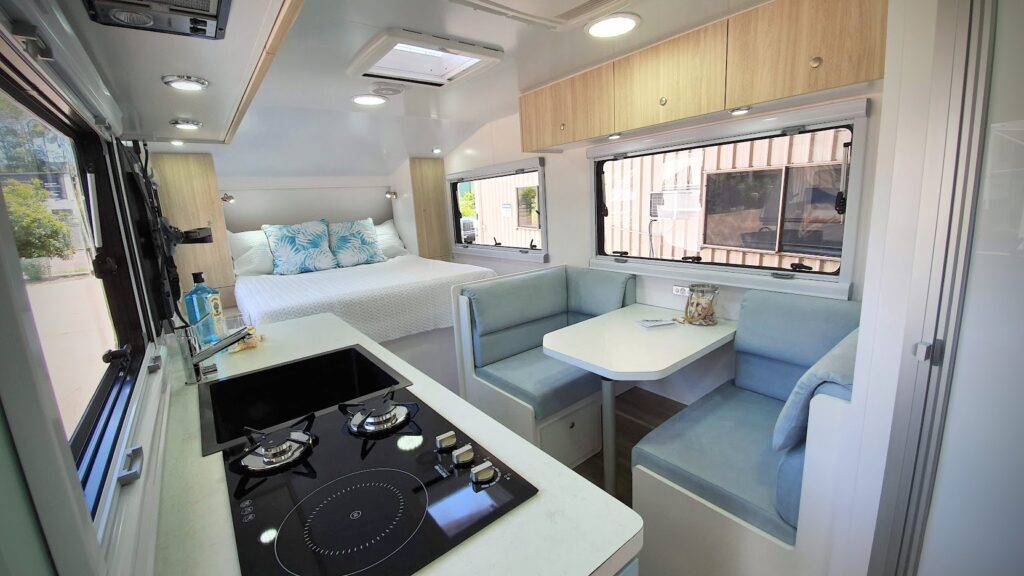

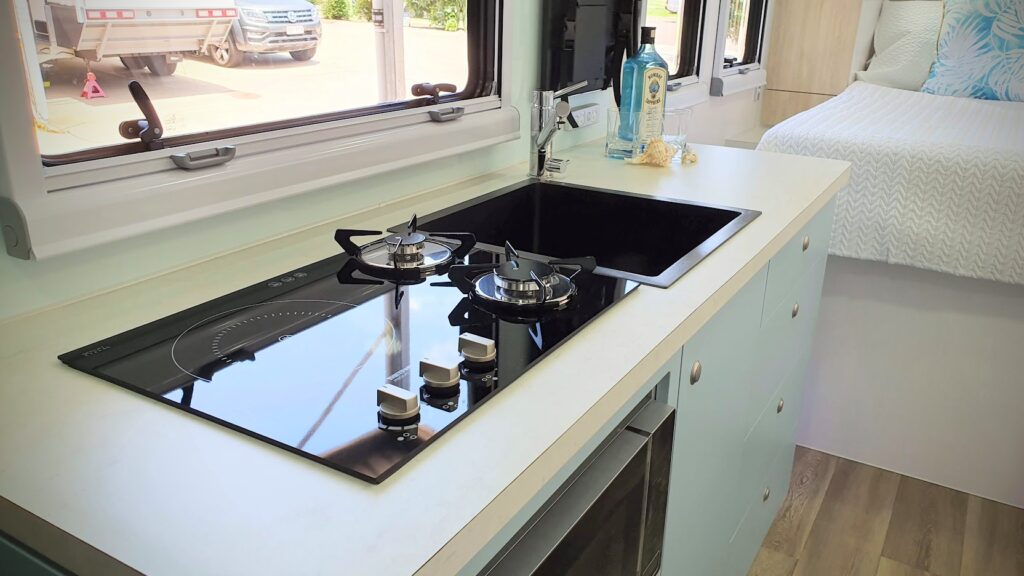

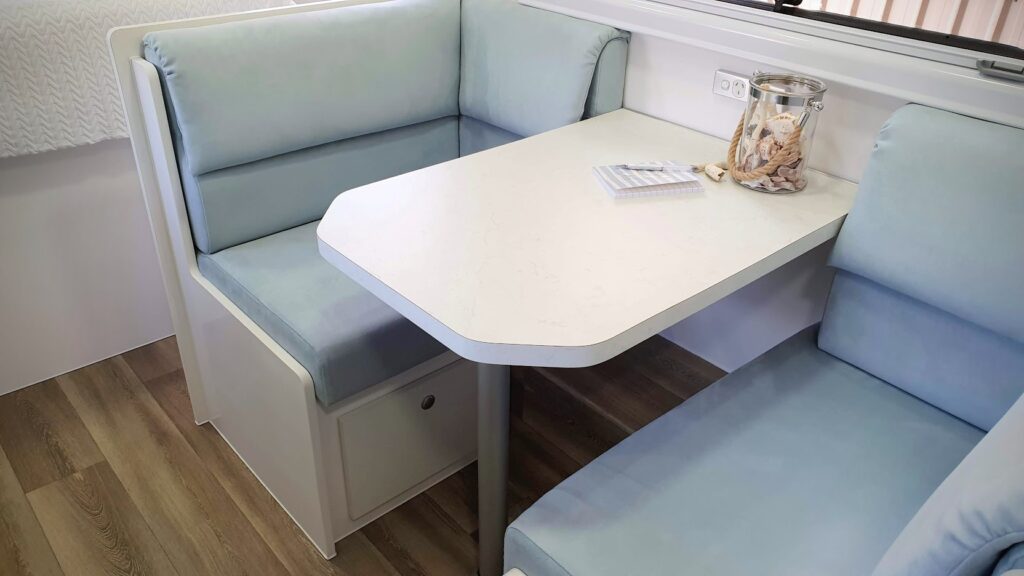

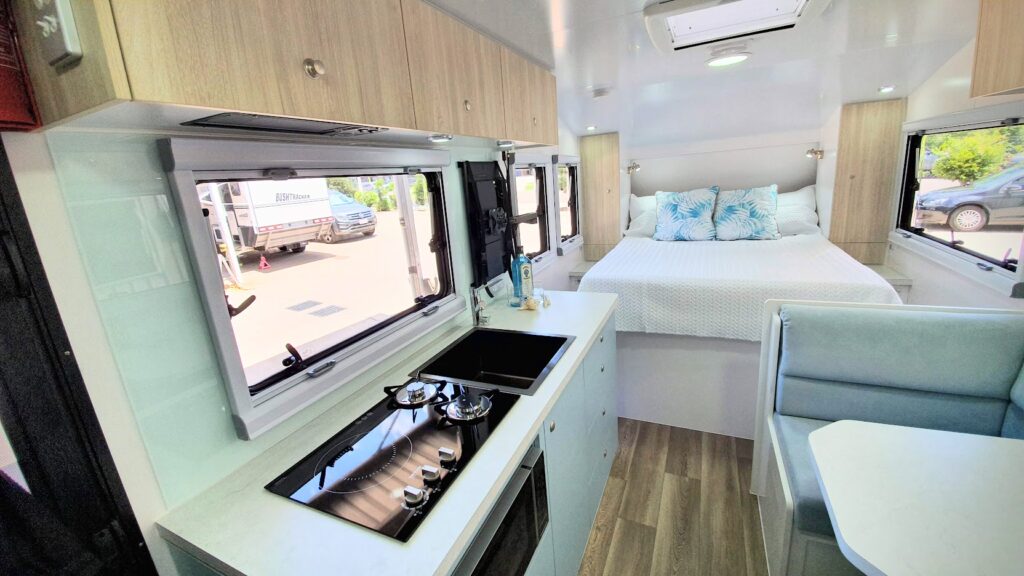

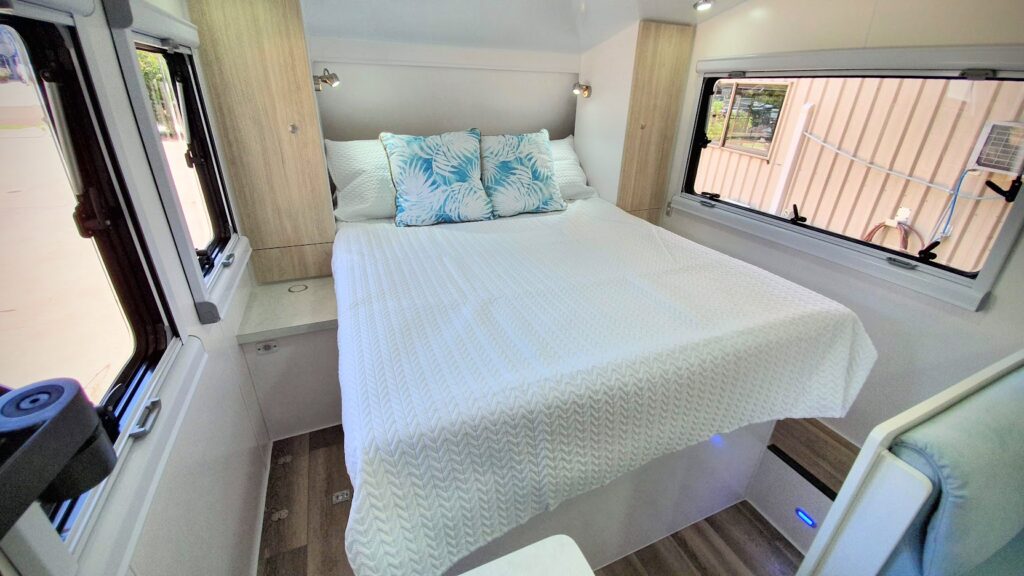

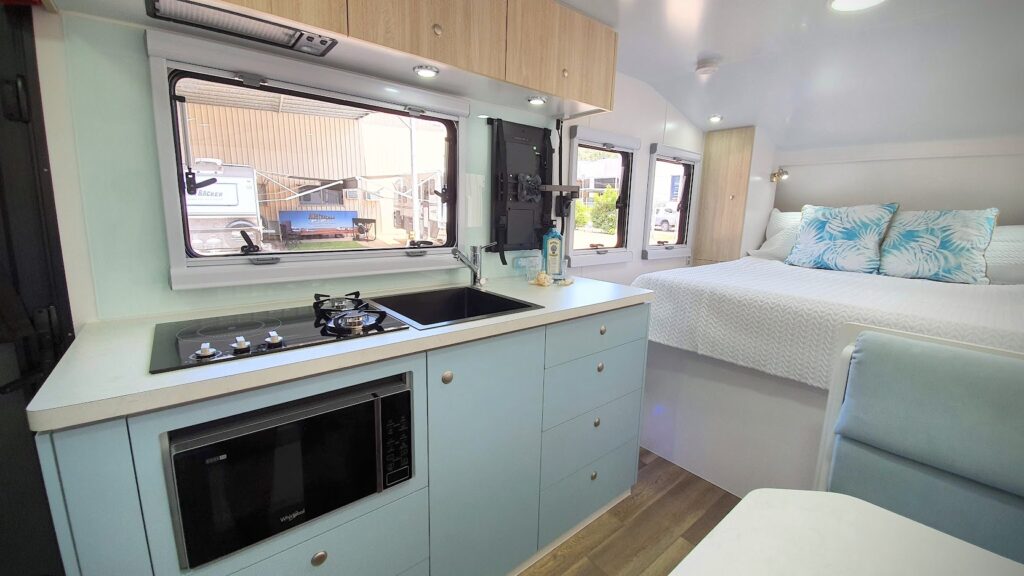

Tandem axle and a tare weight of only 2,160kg (890kg payload), this van has an island bed layout at the front, café dining and kitchen in the middle,  full height fridge and pantry, combined shower and toilet to the rear of the van.


Complete with 200ah Enerdrive Lithium system, 360W solar panels, 190L full height compressor fridge, military load sharing independent suspension.

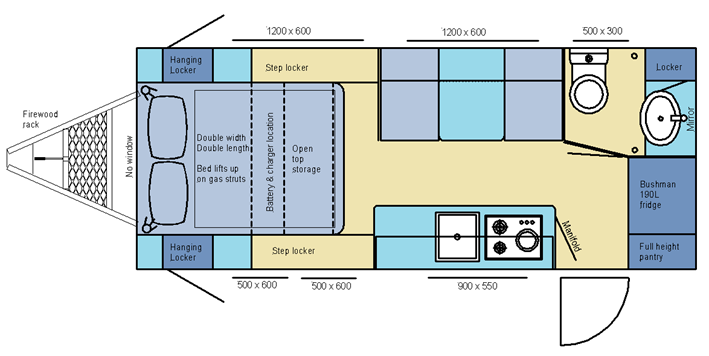

Layout plan


With all standard inclusions and the following additional options:


3 x 75L water tanks (1 potable, 2 non-potable)(225L capacity)

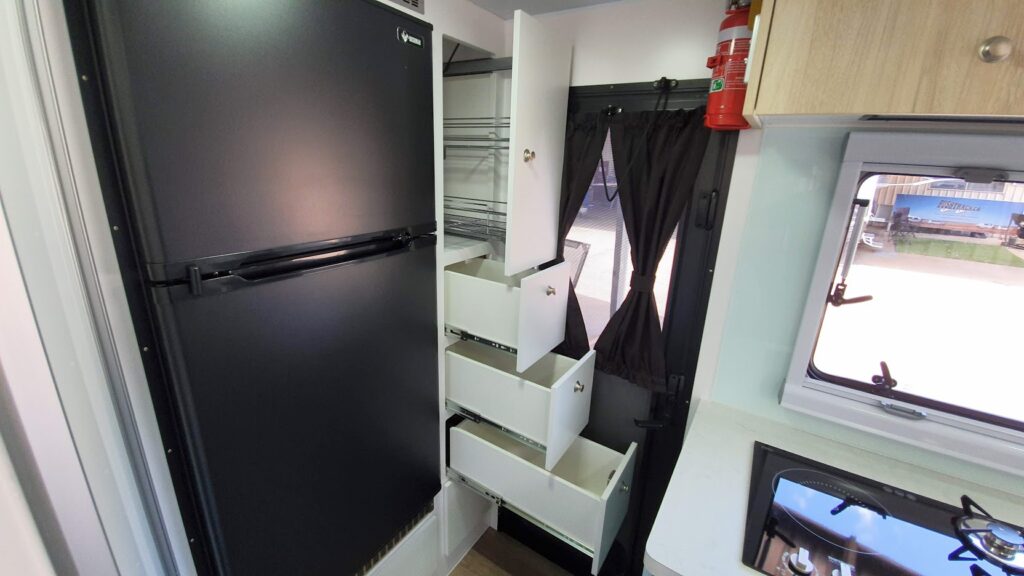

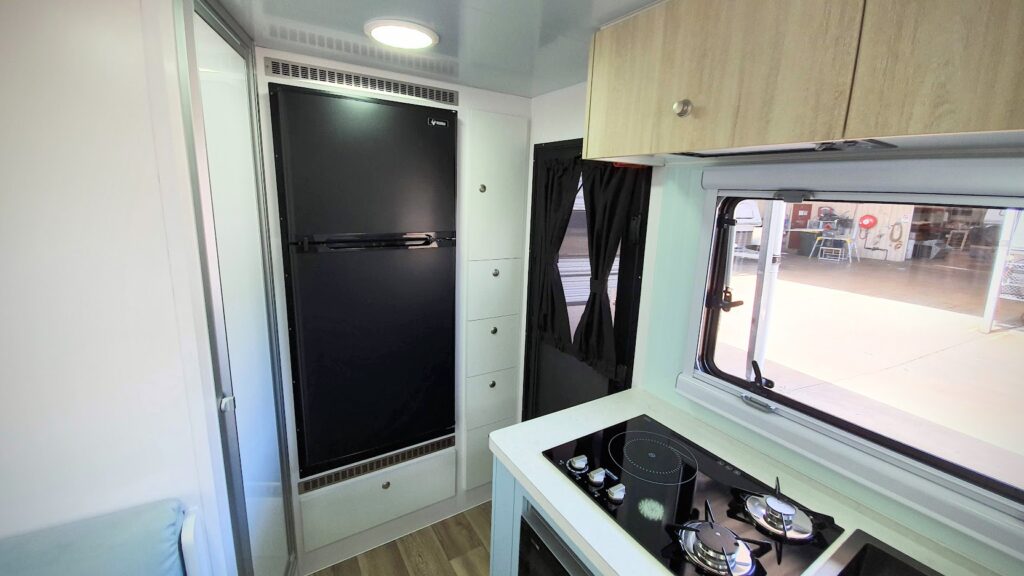

190L 2 door Bushman Compressor fridge (Tropical rating)
Dometic roll out awning
Air conditioning (Dometic Harrier Lite)
Pre-wire for diesel heater
200a/h Enerdrive B-Tec Lithium battery system
2 x 180W high quality solar panels (360W total)
20AMP mains battery charging system
Anderson plug connected to 30A DC to DC charger
Pre-wire for future inverter

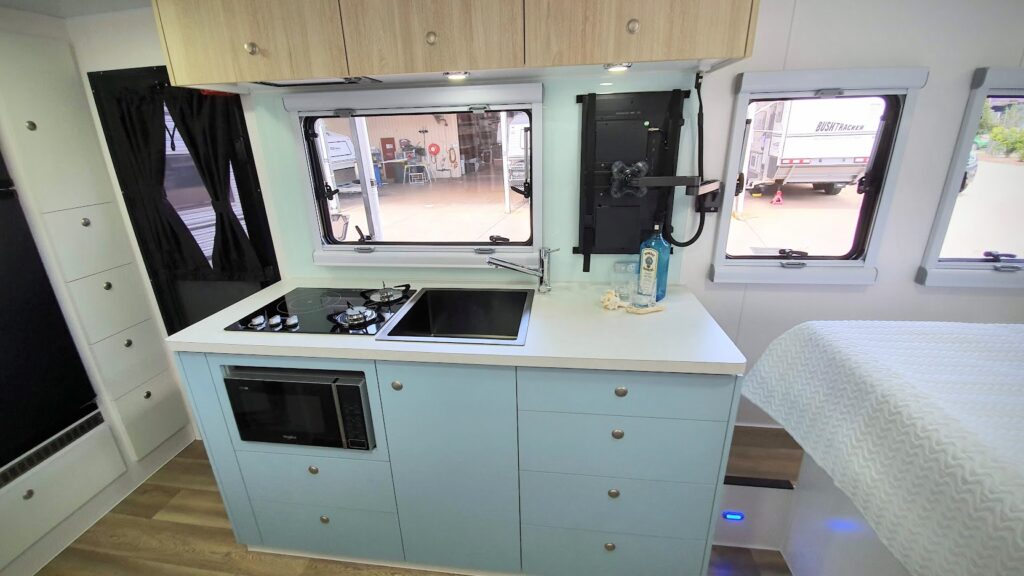

Microwave fully installed
Independent load sharing suspension (60T axle stubs)
Upgrade to side loading tyre carriers (one with mesh)
Baby buzzard spotlights on front of van
Gas bayonet outlet with 3M lead
Maxtrax installed to rear rake of van
(list continued, please refer full pricing guide)




Length (caravan) 16 feet (4.88 M)
Length (overall) 23 feet (7.01 M)
Width 7 feet 2 inches (2.17 M)
Height 11 feet (3.05 M)
Tare weight 2,160 kg
Payload 890kg

Video walkthrough


Photo Gallery
