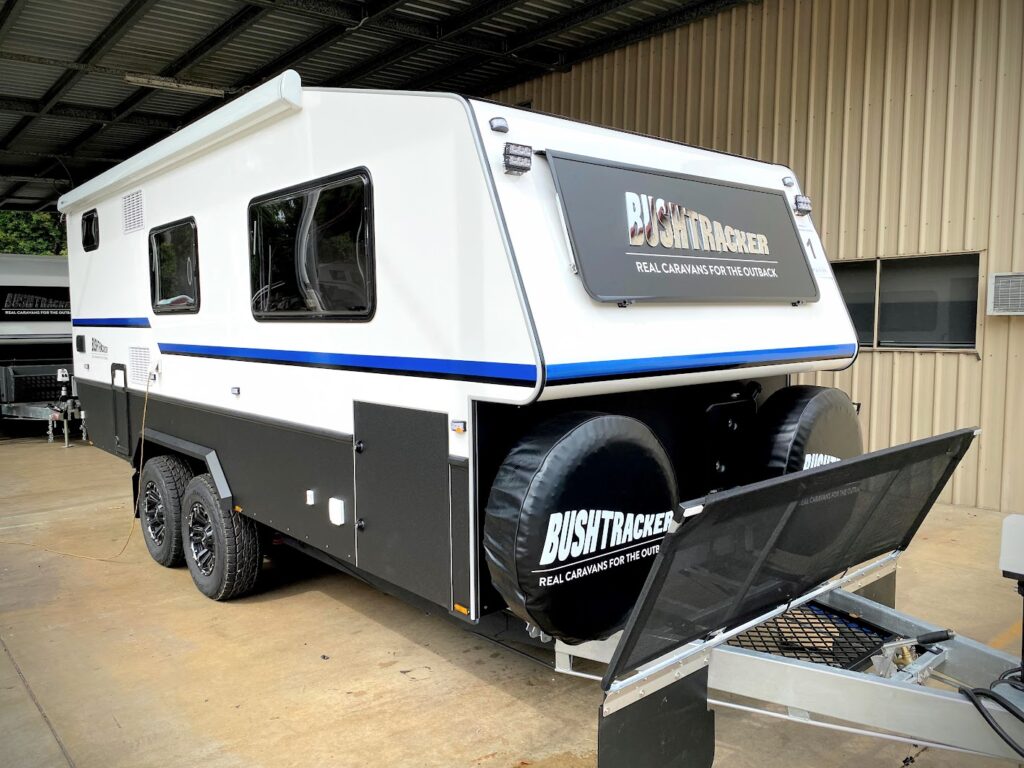

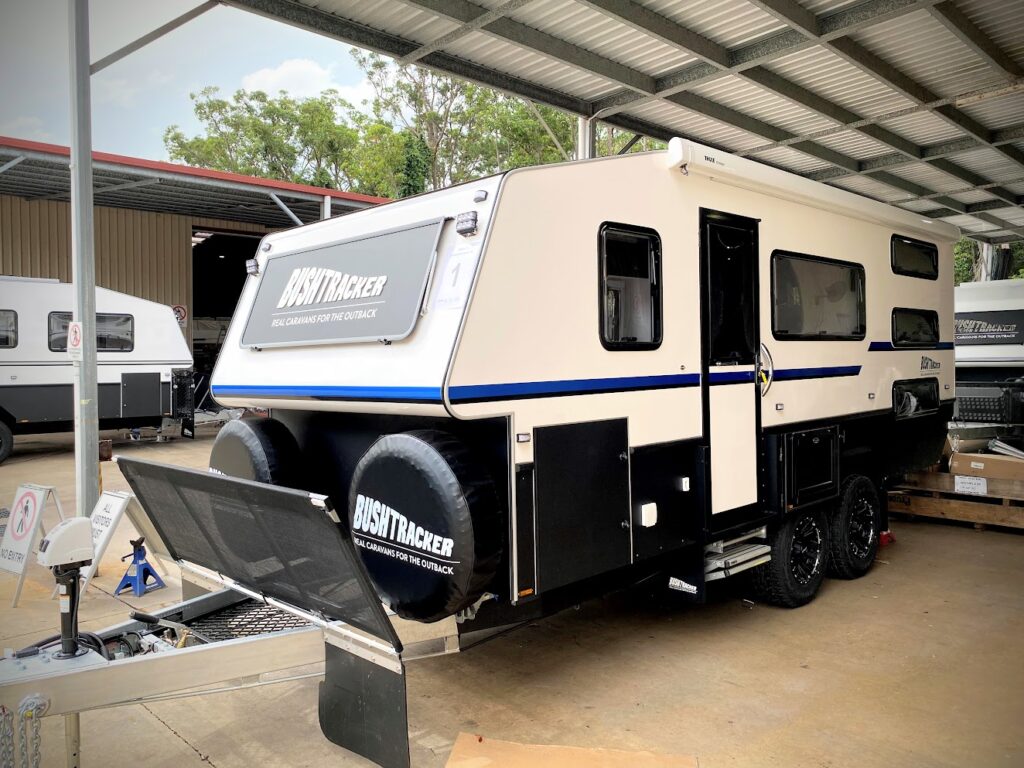

19 foot Bushtracker family (compact width) show van 2021

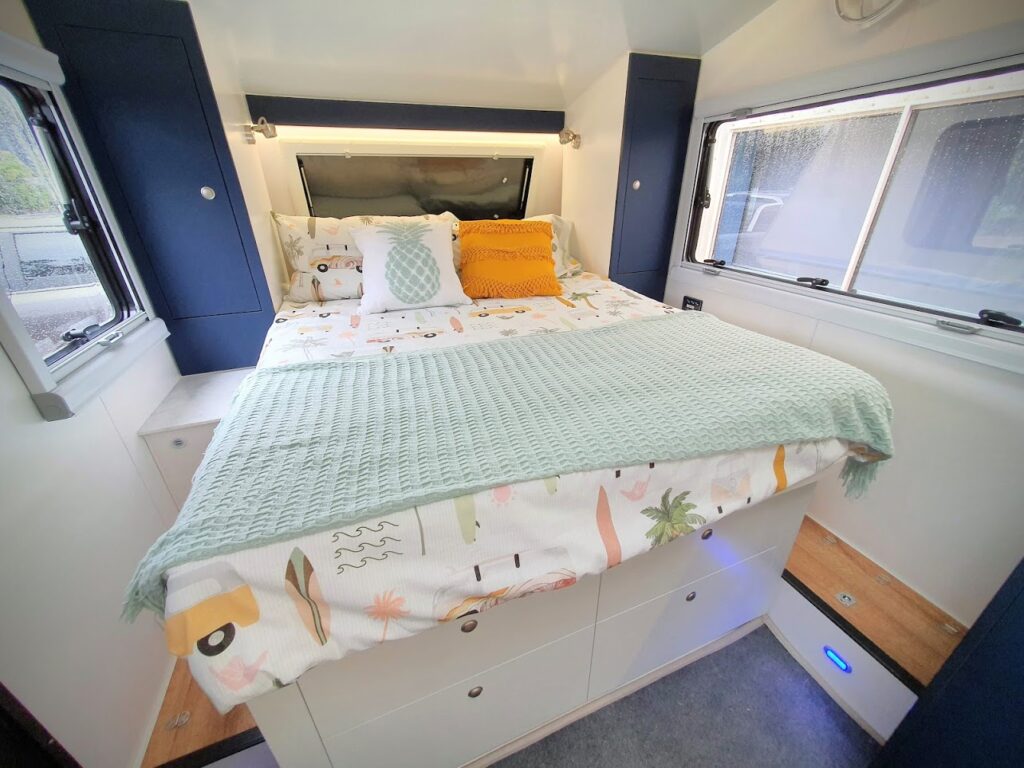

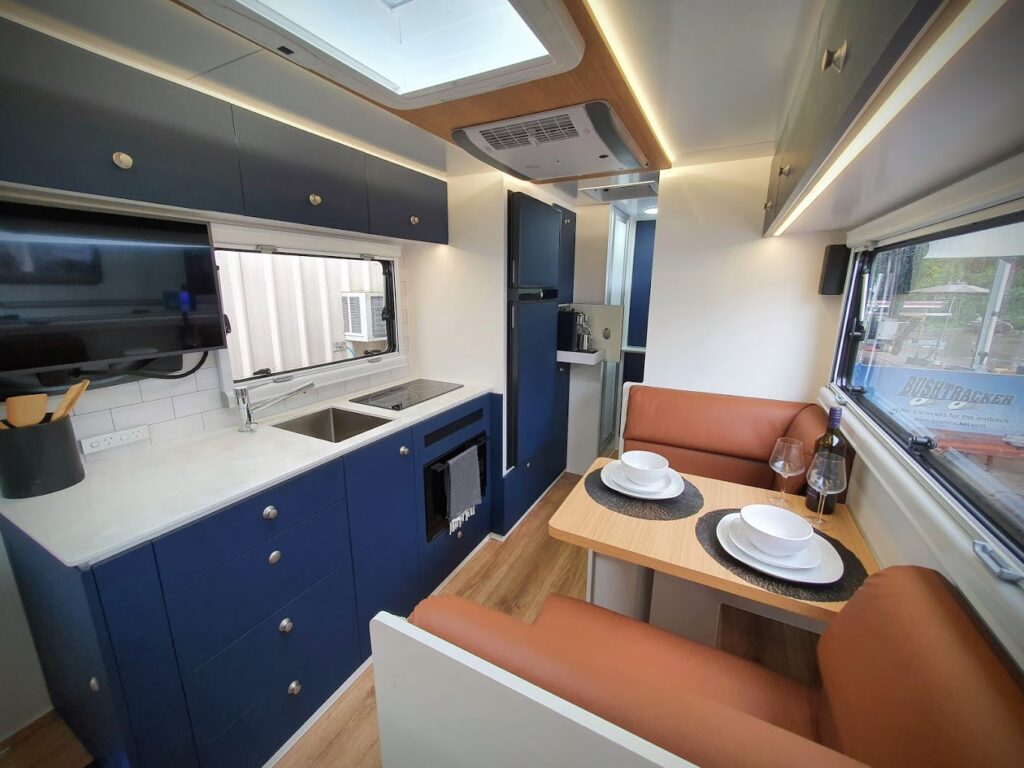

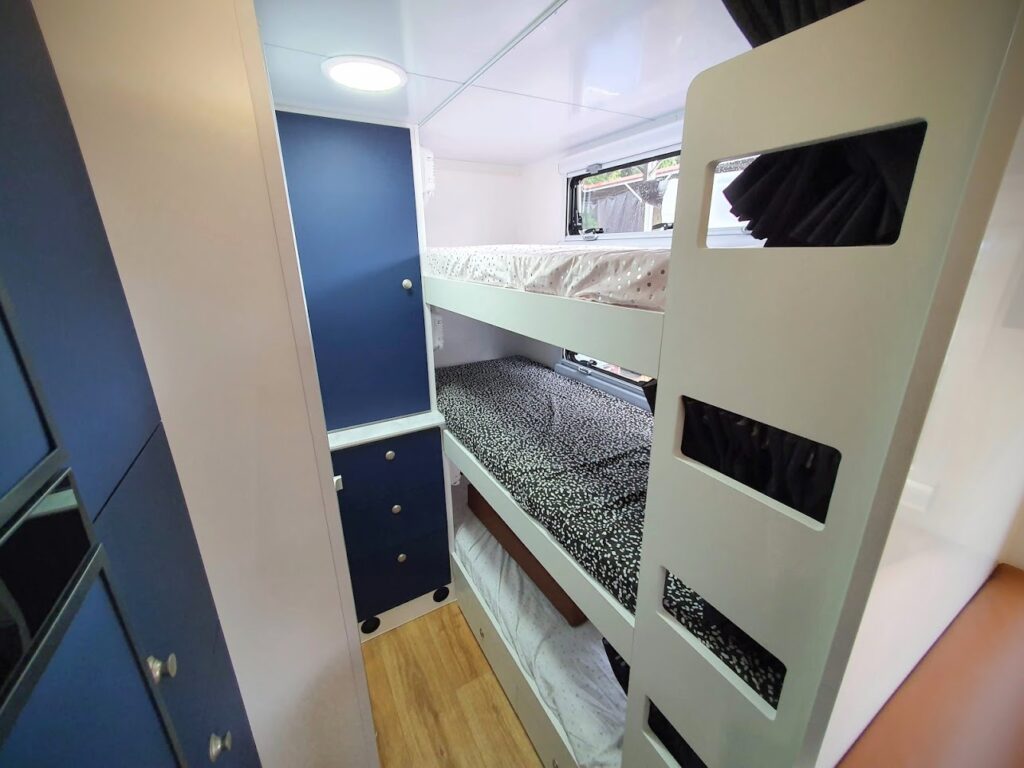

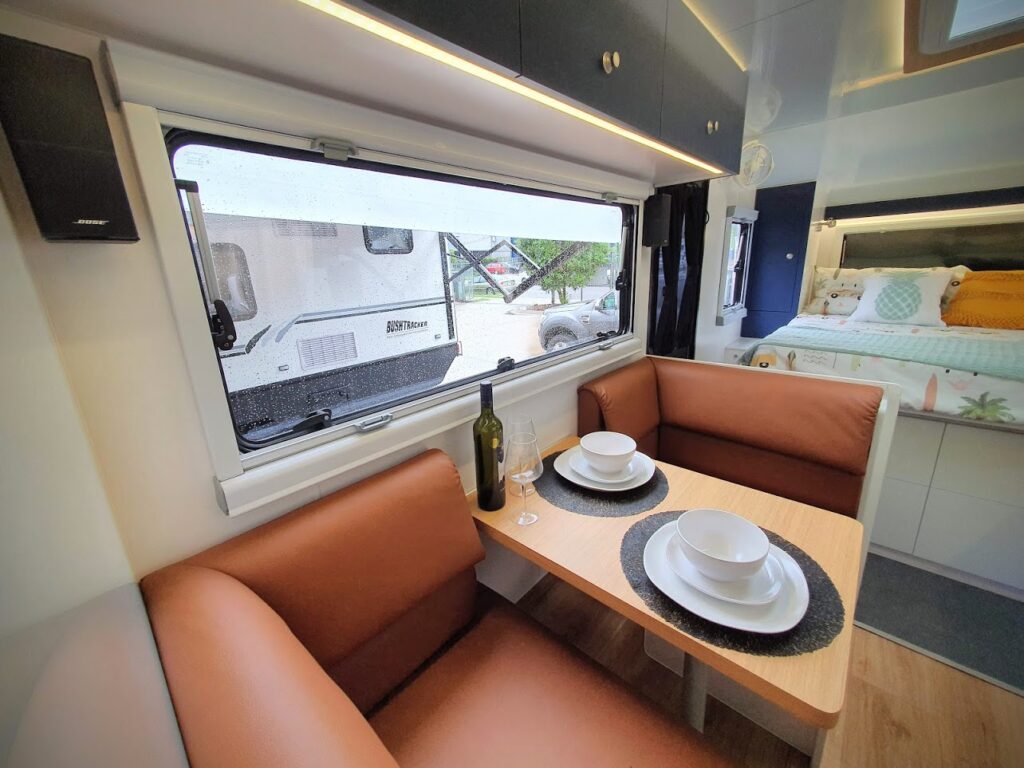

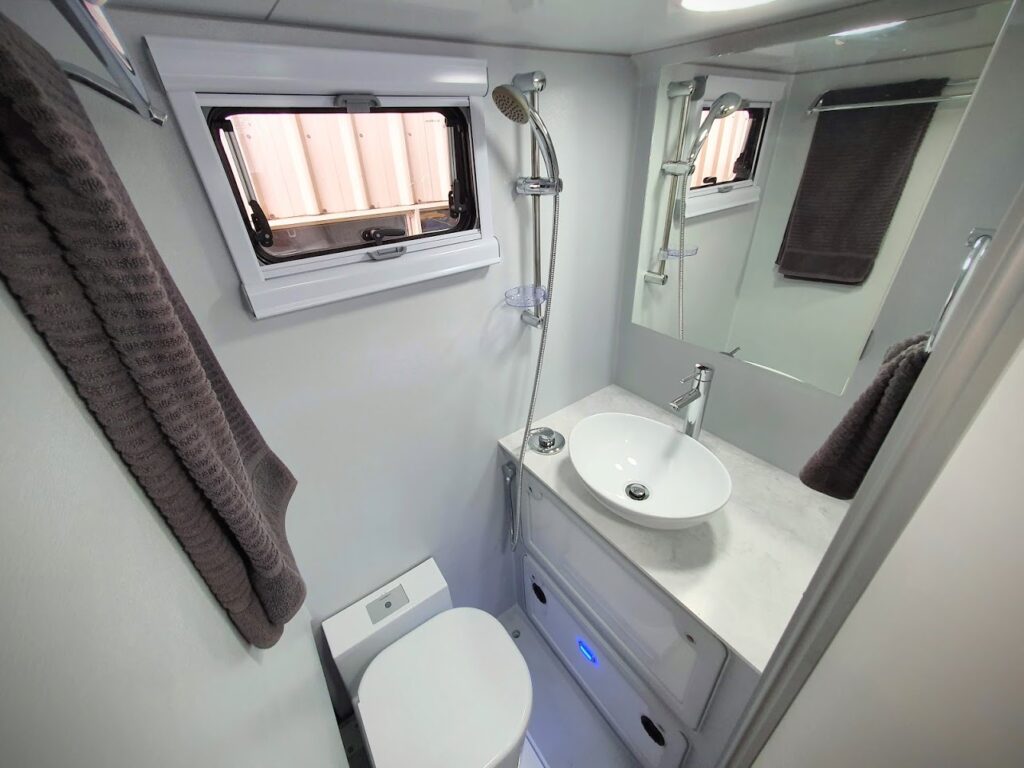

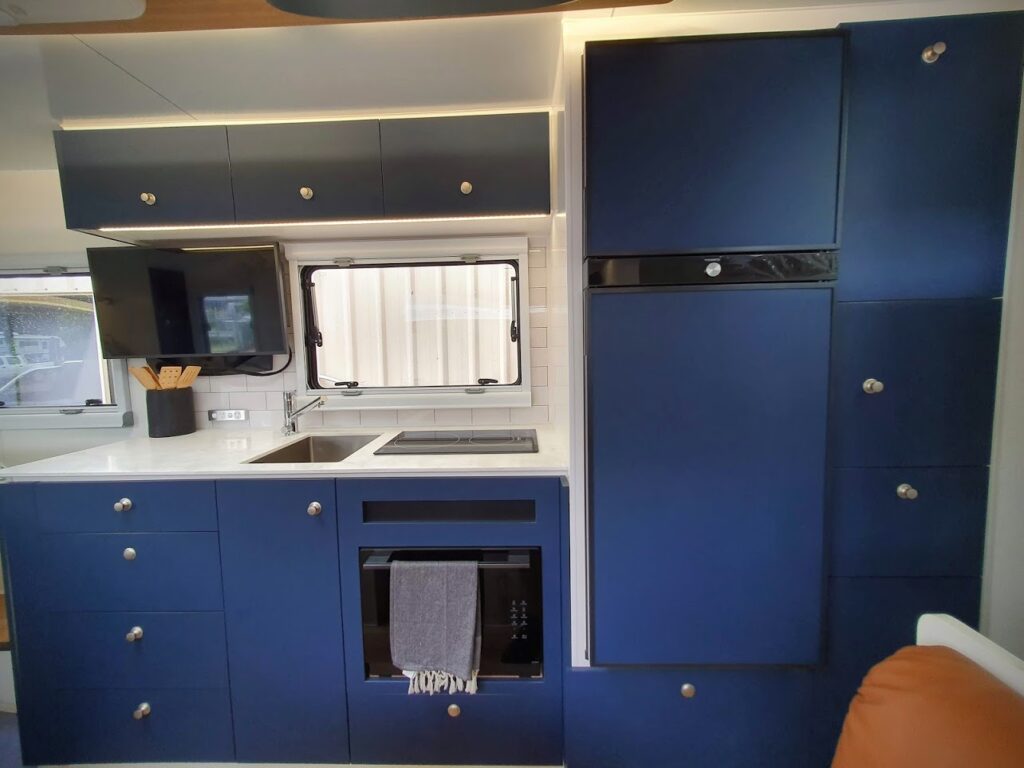

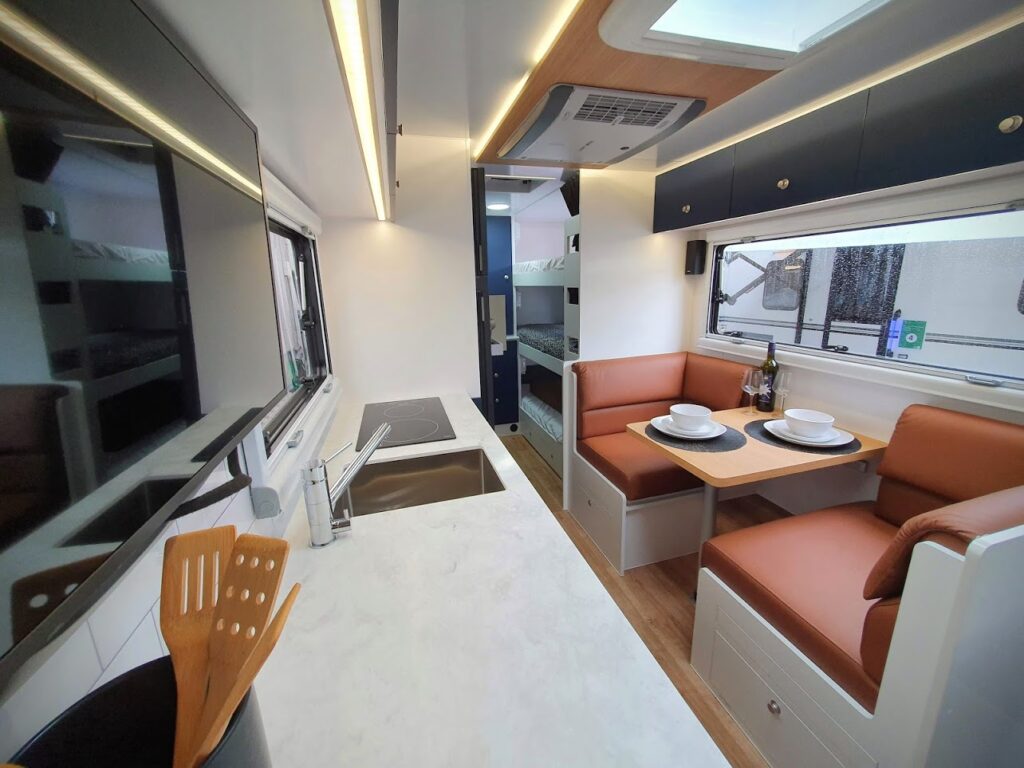

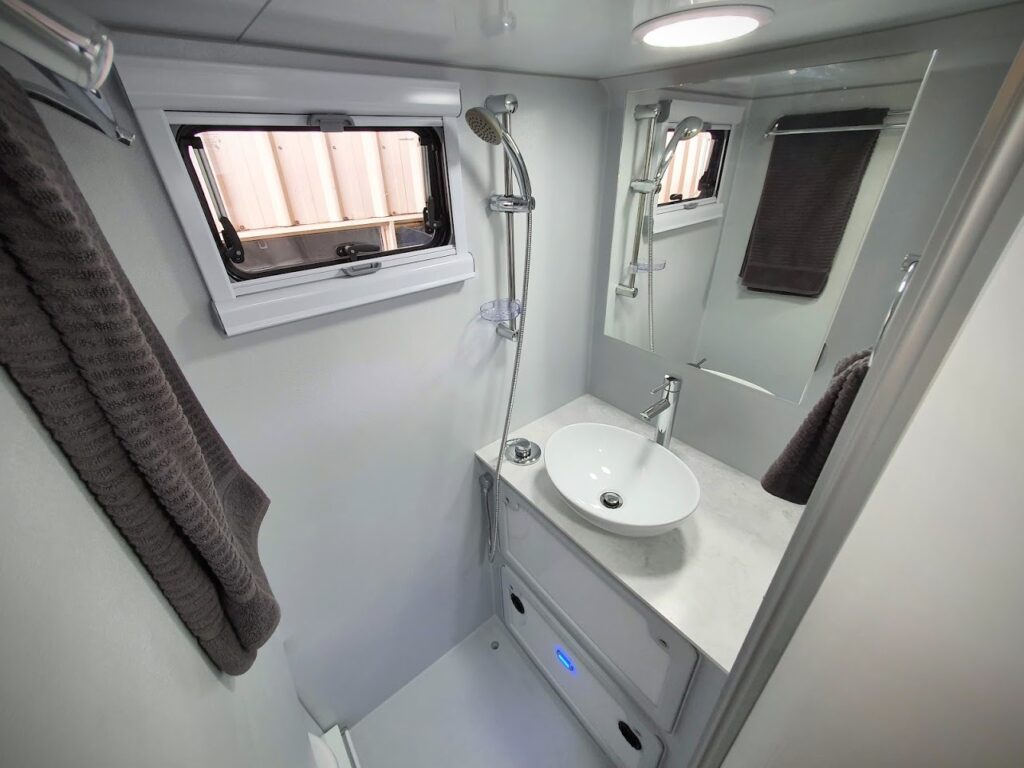

Here are the details of our 19 foot family (compact width) show van for 2021. This van has an island bed layout at the front, café dining (converts to lounge / bed) and kitchen in the middle, combined shower and toilet with slide away toilet and adjacent bunk beds at the rear of the van.

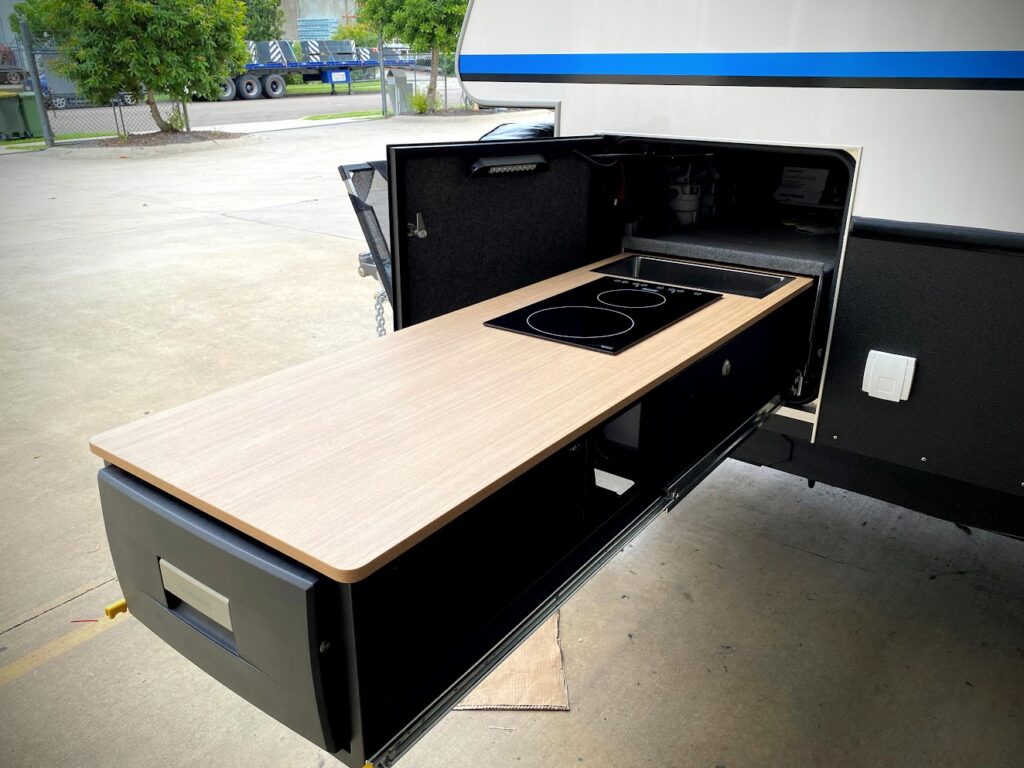

Complete with 600ah Enerdrive pro series Lithium system, 1480W solar panels, 188L full height compressor fridge, military load sharing coil & independent suspension. This van is completely gas free, with a hybrid of electricity and diesel appliances. Induction cooktops (inside & outside), convection microwave / oven / grill / steam oven, 12V refrigeration, 3000W inverter giving the ability to run air con from the batteries, diesel hot water service, diesel heater.


This van will be on display at various caravan shows throughout the year. For more information on dates and venues please visit: Caravan Show Dates | Bushtracker at a Caravan Show near you

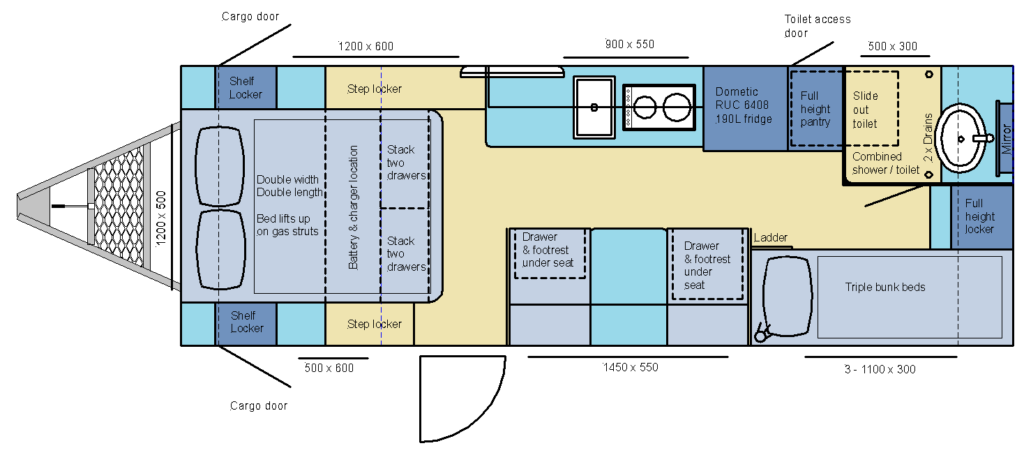

Layout plan


With all standard inclusions and the following additional options:


2 x Outdoor showers (one each side)
5 x 75L water tanks (1 potable, 4 non-potable)(375L capacity)
Water sterilization unit (twin filter + UV)
188L 2 door Dometic Compressor fridge (Tropical rating)
2 x Thule electric roll out awnings with LED strip lights
Air conditioning (Truma Aventa)
5 x Caframo fans installed
600a/h Enerdrive PRO SERIES Lithium battery system
8 x 185W flexible solar panels (1480W total)
Anderson plug connected to 40A DC to DC charger
ePro Combi 3000W inverter / 120A mains battery charger
Simplicity LSC load sharing coil suspension (60T axle stubs)
Truma Combi D (diesel hot water system and room heater)
Upgrade to dual induction cooktop
Panasonic convection microwave / oven / steam oven / grill
Fantastic hatch

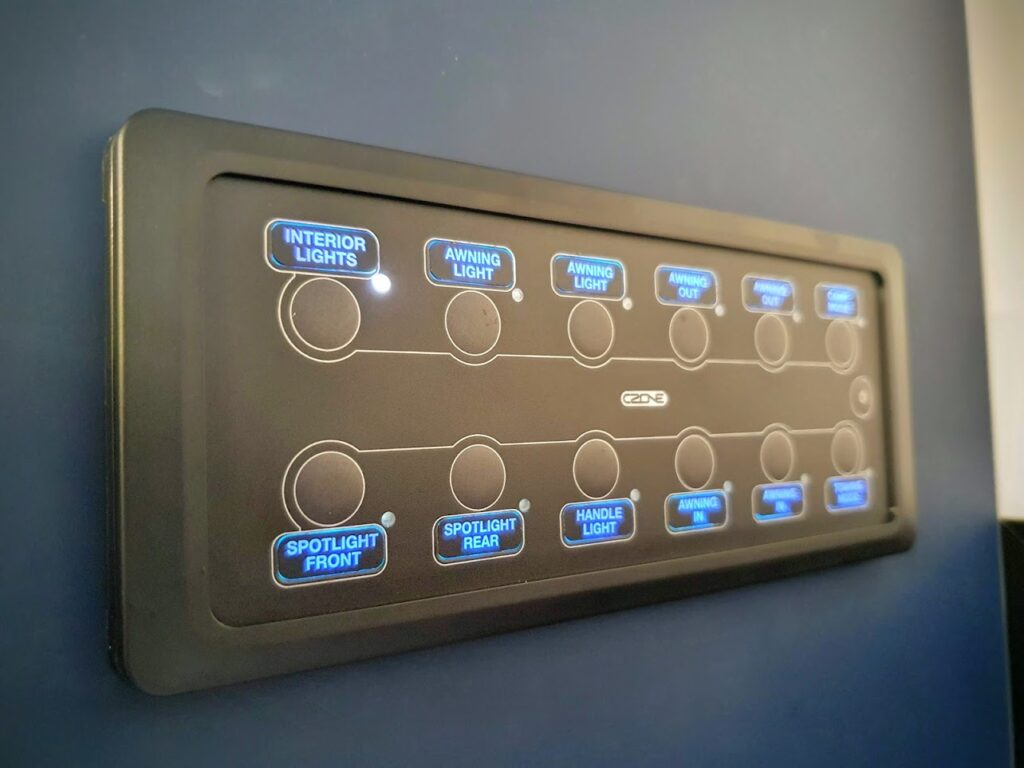

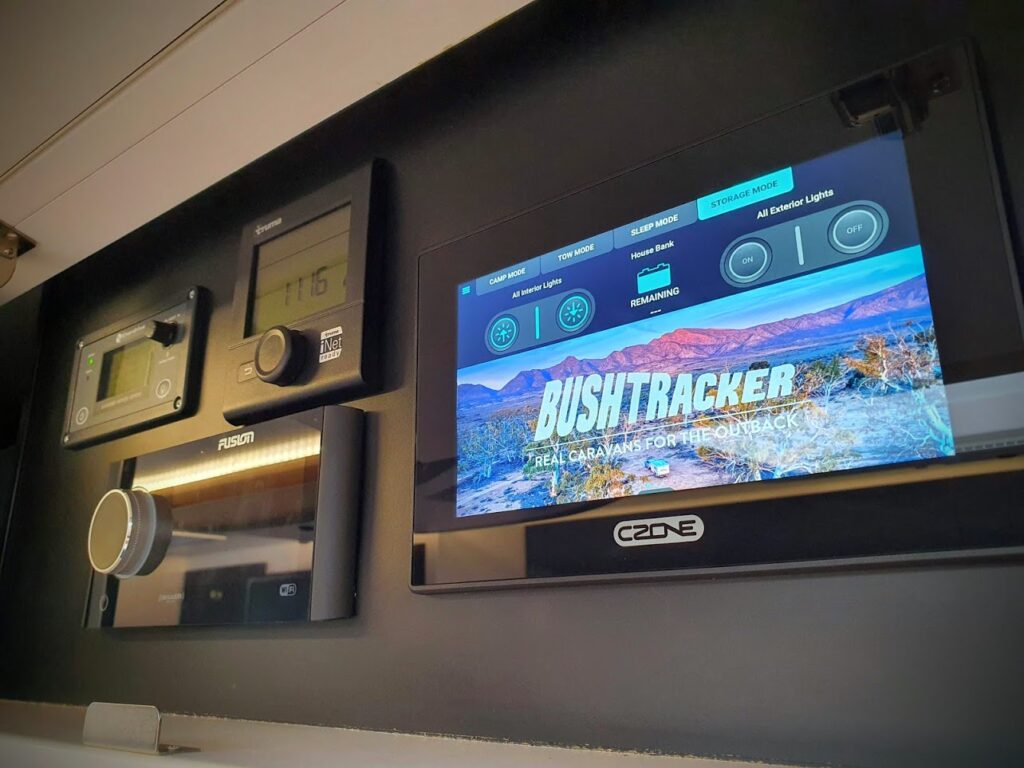

C-Zone digital switching system
Baby buzzard spotlights on front & rear
Upgrade to 32” smart TV on scissor wall mount
4G / WiFi modem router
WiTi security system
Electric side loading tyre carriers
(list continued, please refer full pricing guide)




Length (caravan) 19 feet (5.79 M)
Length (overall) 25 feet (7.62 M)
Width 7’2” feet (2.17 M)
Height 11 feet (3.05 M)
Tare weight 2,960 kg
Payload 990 kg
