20 Foot Bushtracker Show Van 2020



Here are the details of our 20 foot couples (full width) show van for 2020. Whilst this van is now sold and travelling around Australia with its new owners, it can be used as a great reference point for customising your own Bushtracker caravan.

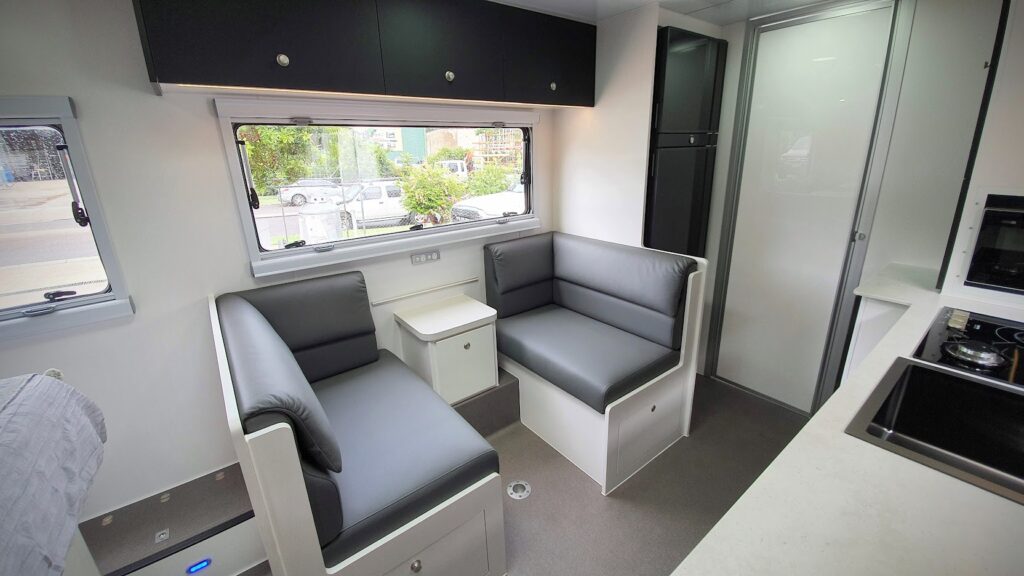

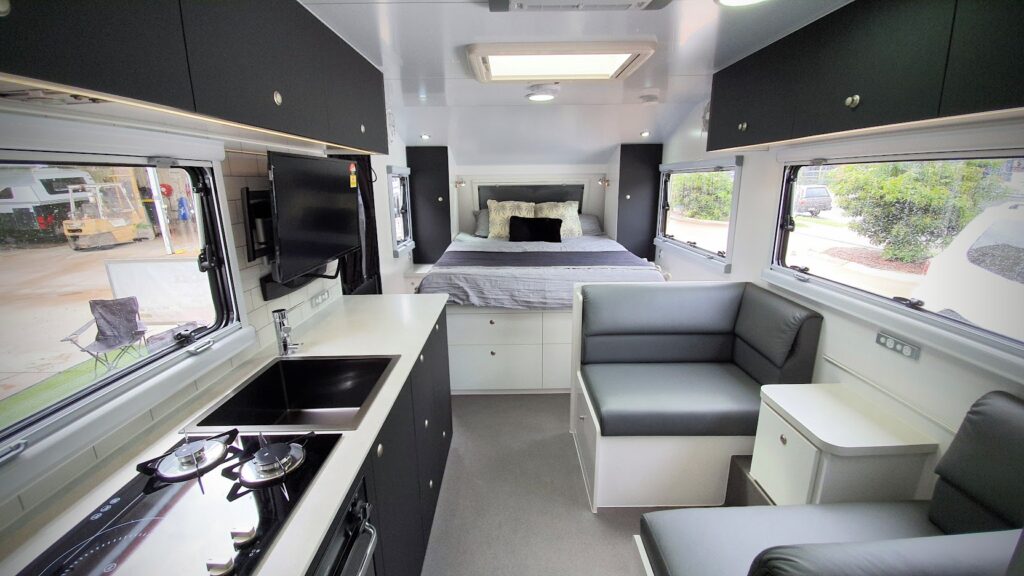

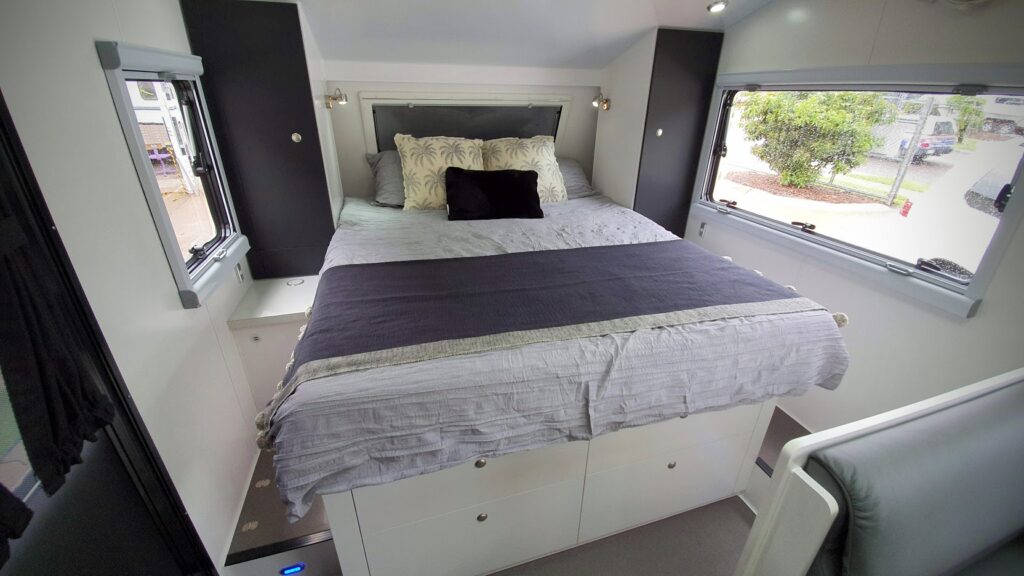

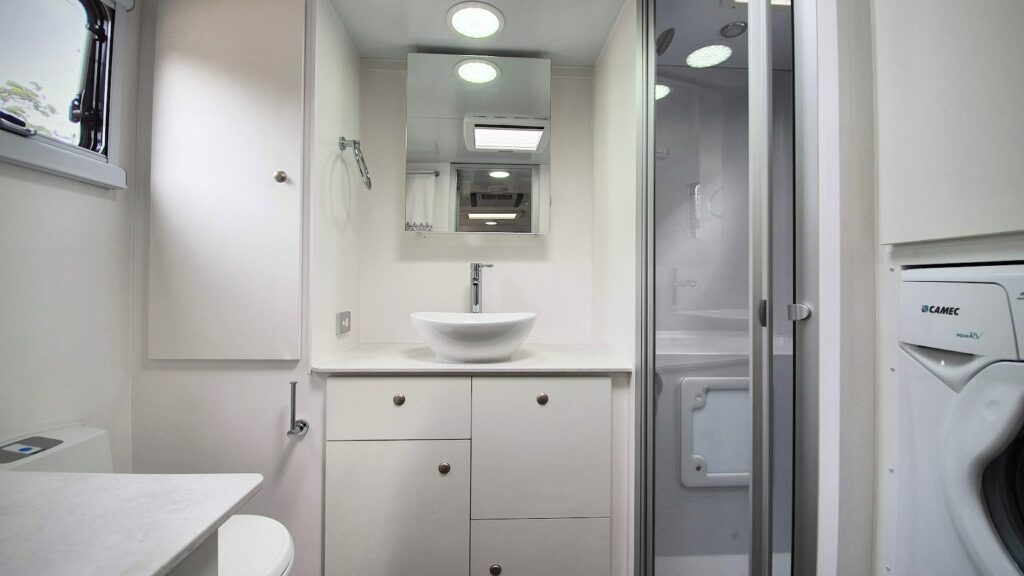

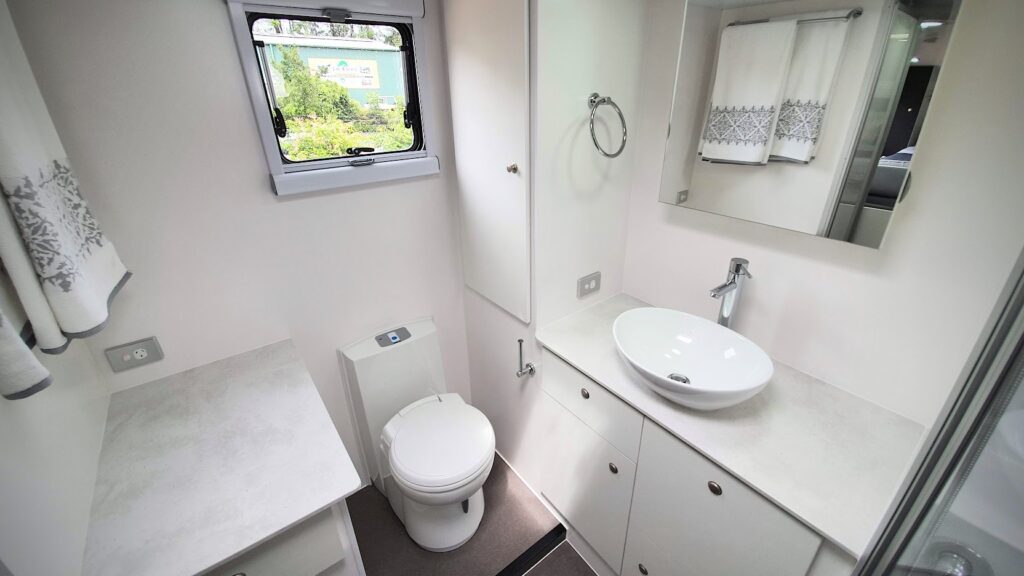

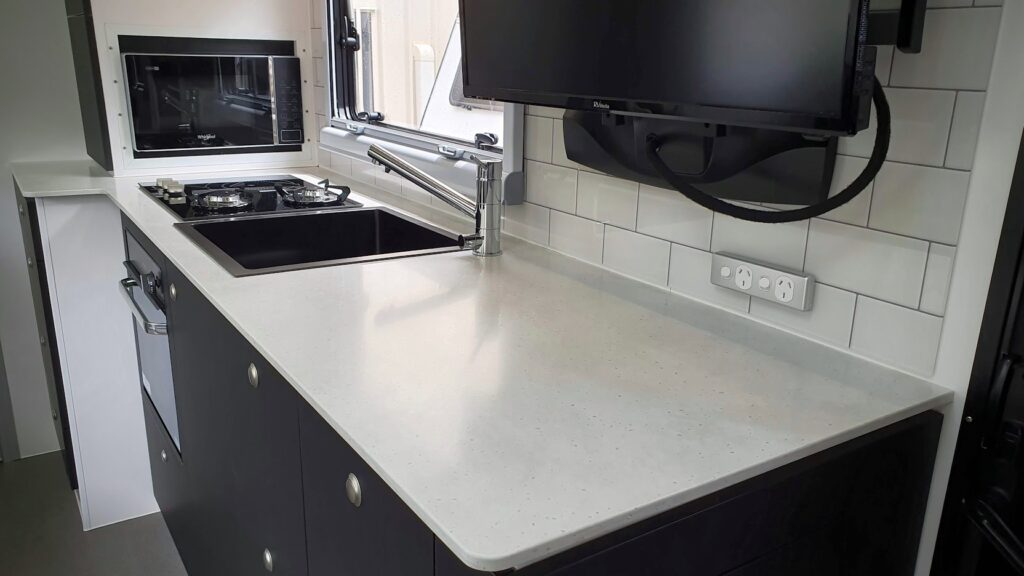

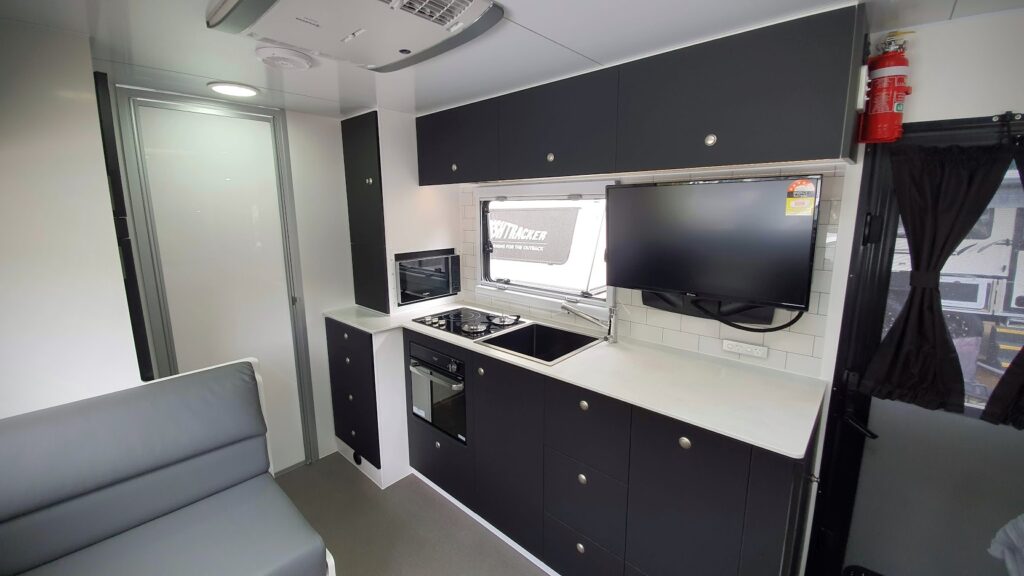

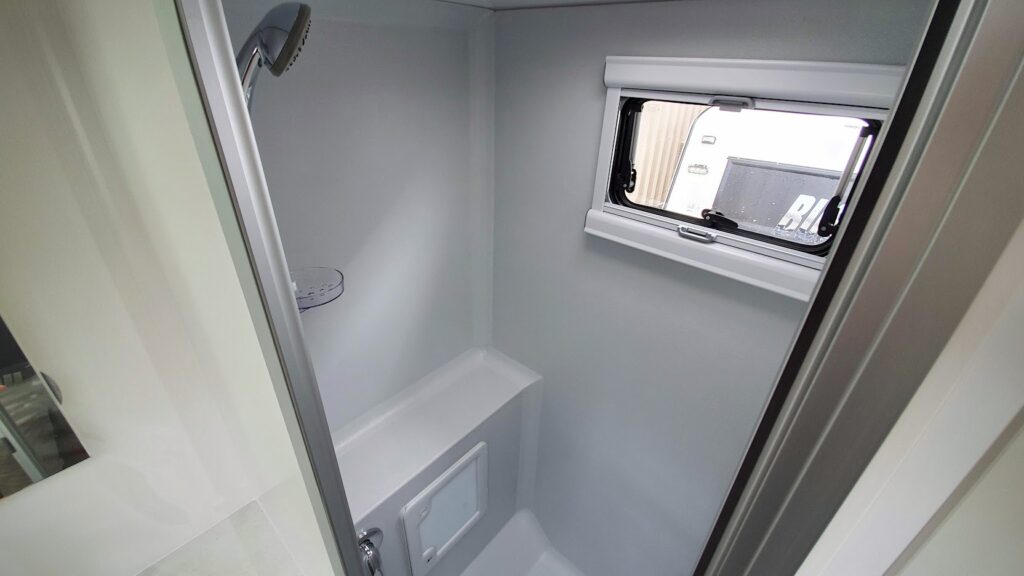

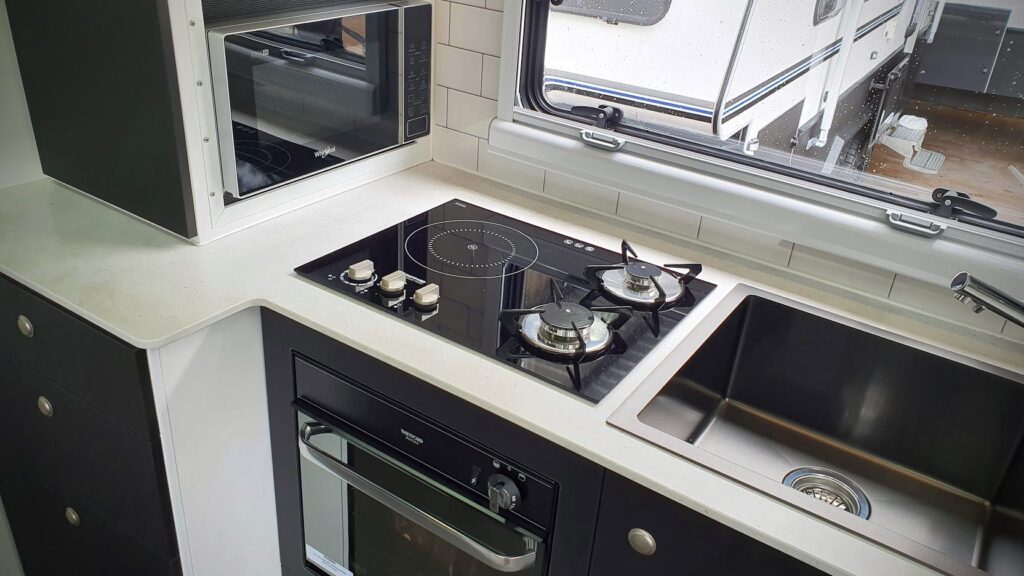

This van has an island bed layout at the front, café dining and kitchen in the middle with full height pantry, huge separate shower and toilet at the rear of the van. Complete with 300ah Enerdrive pro series Lithium system, 540W solar panels, 188L full height compressor fridge, diesel heater, military load sharing independent suspension.



This van also has a built in sealed generator box built in to the body of the van to save the additional weight and drawbar length of a box on the A-frame.

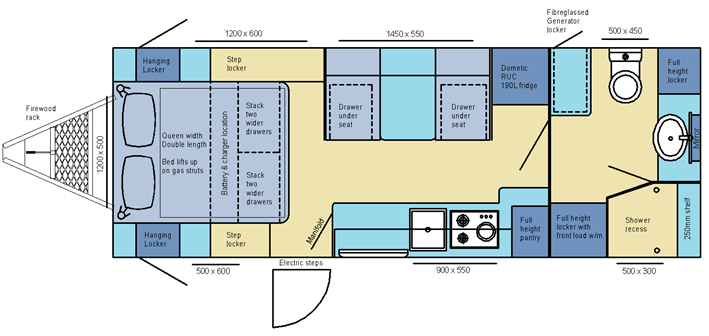

Layout plan



20 Foot Bushtracker Show Van 2020
With all standard inclusions and the following additional options:



12V roof hatch in shower recess
3 x 90L water tanks (1 potable, 2 non-potable)(270L capacity)

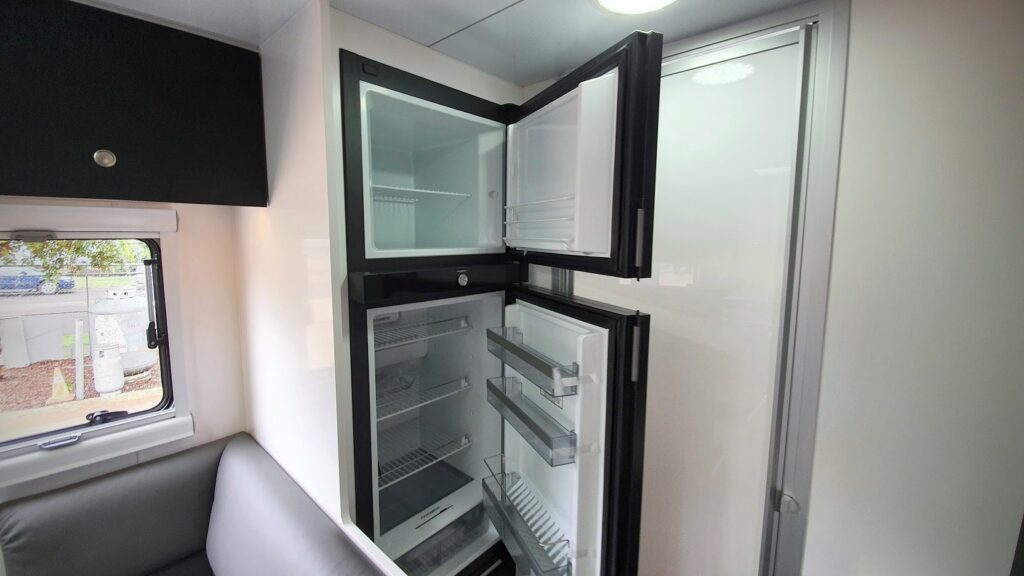

188L 2 door Dometic Compressor fridge (Tropical rating)
Dometic electric roll out awning
Air conditioning (Truma Aventa)
2 x Caframo fans installed
Webasto diesel heater with 2 outlets

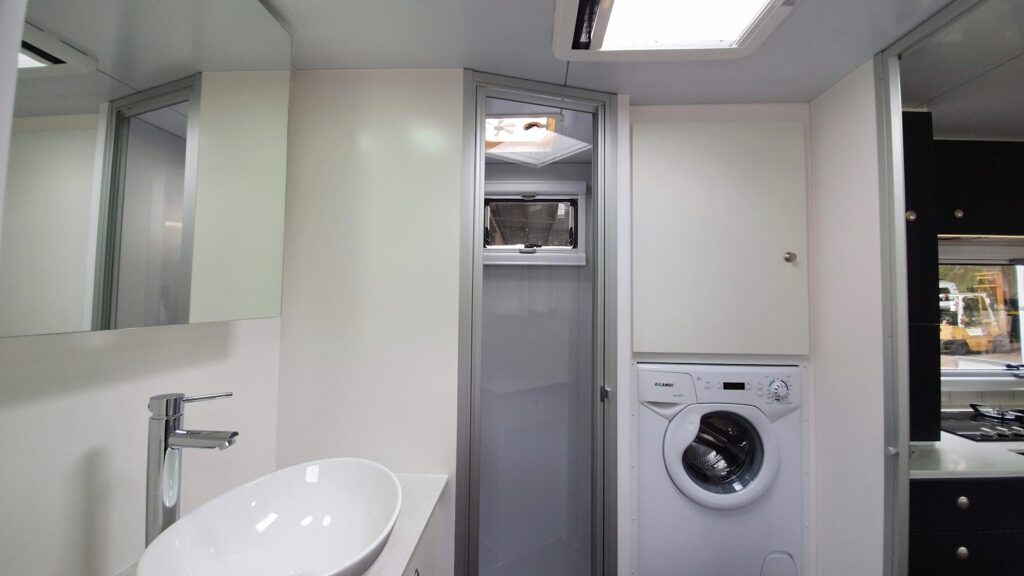

Camec 4kg front load washing machine
300a/h Enerdrive Lithium battery system (external BMS)
3 x 180W high quality solar panels (540W total)
60AMP mains battery charging system
Anderson plug connected to 30A DC to DC charger
Pre-wire for future inverter
Microwave fully installed
300mm extended drawbar
Independent load sharing suspension (60T axle stubs)
Upgrade to side loading tyre carriers (one with mesh)
Baby buzzard spotlights on front of van
Gas bayonet outlet with 3M lead
Upgrade to electric steps

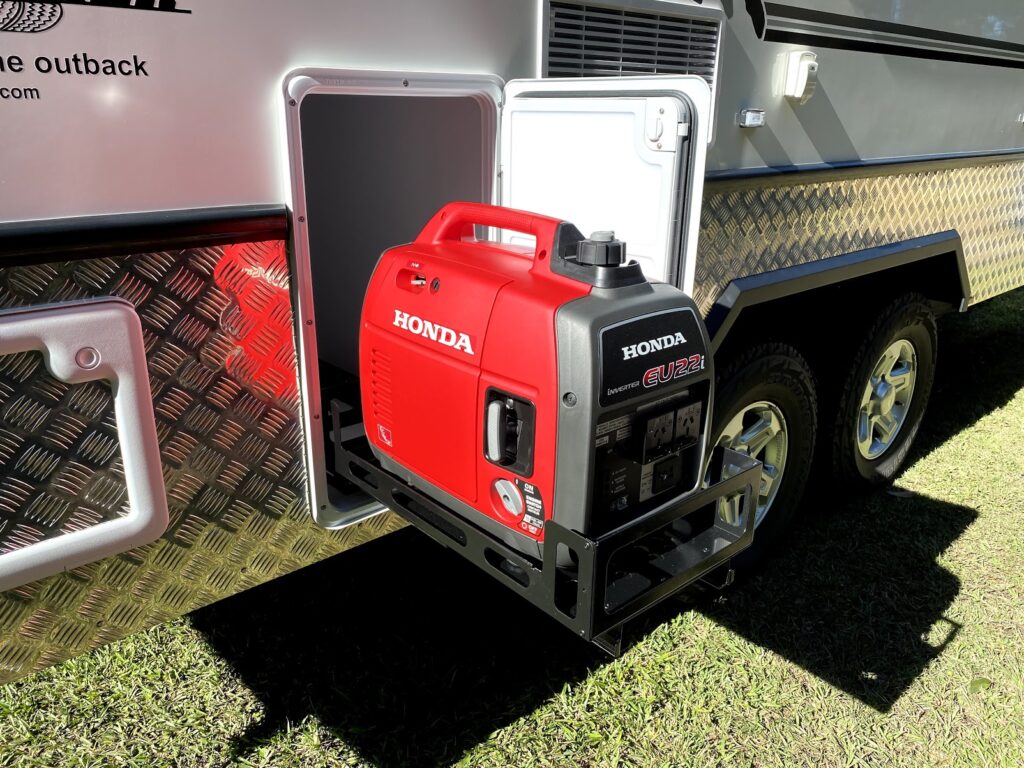

Sealed generator locker on off side
Wireless QI phone chargers on bedside tables
(list continued, please refer full pricing guide)



Specifications



Length (caravan) 20 feet (6.10 M)
Length (overall) 27 feet (8.23 M)
Width 8 feet (2.40 M)
Height 11 feet (3.10 M)
Tare weight 2,880kg
Payload (Vehicle dependent) 620kg / 970kg

Video walkthrough



Photo Gallery



Want more information on this van?

Please fill out your details below and we will get back to you with the full PDF spec sheet and break down of pricing
